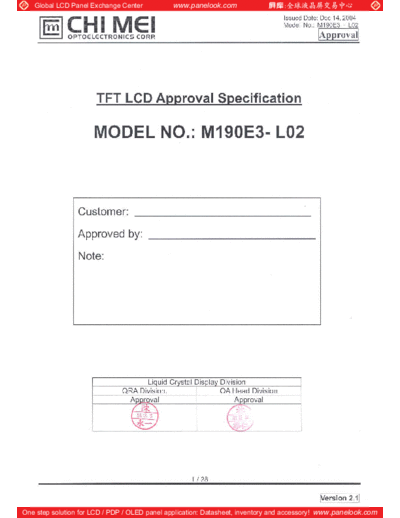

Image preview - the first page of the document
![Panel_CMO_M190E3-L02_1_[DS]](/pics/5c8ec7ebf1c4b.gif)
>> Download Panel_CMO_M190E3-L02_1_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec 14, 2004
Model No.: M190E3 - L02
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 15
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 17
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PACKAGING ------------------------------------------------------- 23
8.1 PACKING SPECIFICATIONS
8.2 PACKING METHOD
9. DEFINITION OF LABELS ------------------------------------------------------- 25
10. PRECAUTIONS ------------------------------------------------------- 26
10.1 ASSEMBLY AND HANDLING PRECAUTIONS
10.2 SAFETY PRECAUTIONS
11. MECHANICAL CHARACTERISTICS ------------------------------------------------------- 27
2 / 28
Version 2.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec 14, 2004
Model No.: M190E3 - L02
Approval
REVISION HISTORY
Version Date Section Description
Ver 1.0 July, 12, 04' All M190E 3 -L02 Specifications was first issued.
Ver 2.0 Sep, 23, `04 7.2 Color Chromaticity Specification:
Red (0.647, 0.347) (0.650, 0.345)
Green (0.287, 0.603) (0.287, 0.600)
Blue (0.141, 0.076) (0.140, 0.068)
Response time specification:
TR = 13 ms, TF = 7 ms
Ver 2.1 Dec, 14, `04 1.5 Module Size Depth: Typical 19.7 mm
3.1 Rush Current: Max 3.8A 3.0A
5.1 th
Modified Pin 27 to be NC.
7.2 Contrast Ratio: Typical 800:1 1,000:1
3 / 28
Version 2.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec 14, 2004
Model No.: M190E3 - L02
Approval
1. GENERAL DESCRIPTION
1.1 OVERVIEW
M190E3 -L02 is an 19.0" TFT Liquid Crystal Display module with 4 CCFL Backlight unit and 30 pins
2ch-LVDS interface, which is compliance with VESA standard specification. This module supports 1280 x
1024 S XGA mode and can display 16.7M colors. The inverter module for Backlight is not built in.
1.2 FEATURES
- Extra-wide viewing angle.
- High contrast ratio
- Fast response time
- High color saturation
- S XGA (1280 x 1024 pixels) resolution
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
1.3 APPLICATION
- TFT LCD Monitor
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 376.32 (H) x 301.056 (V) ( 0" diagonal)
19. mm
(1)
Bezel Opening Area 380.4 (H) x 305.1 (V) mm
Driver Element a-si TFT active matrix - -
Pixel Number 1280 x R.G.B. x 1024 pixel -
Pixel Pitch 0.294 (H) x 0.294 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 16.7M color -
Transmissive Mode Normally black - -
Surface Treatment Hard coating (3H), Anti-glare (Haze 25) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 403.7 404.2 404.7 mm
Module Size Vertical(V) 329.5 330.0 330.5 mm (1)
Depth(D) - 19.7 20 mm
Weight - 2600 g -
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
4 / 28
Version 2.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec 14, 2004
Model No.: M190E3 - L02
Approval
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
