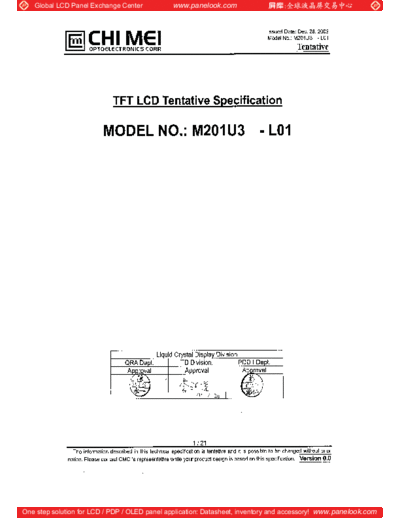

Image preview - the first page of the document
![Panel_CMO_M201U3-L01_0_[DS]](/pics/5c8ec8b7642a9.gif)
>> Download Panel_CMO_M201U3-L01_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec. 26, 2002
Model No.: M201U3 - L01
Tentative
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 6
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 8
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 9
5.1 TFT LCD MODULE
5.2 LVDS DATA ASSIGNMENT
5.3 BACKLIGHT UNIT
5.4 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 12
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 15
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 19
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
8.2 SAFETY PRECAUTIONS
9. MODULE DRAWINGS ------------------------------------------------------- 20
2 / 21
The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec. 26, 2002
Model No.: M201U3 - L01
Tentative
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 0.0 Dec.26,'02 All All Tentative Specification was first issued.
3 / 21
The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec. 26, 2002
Model No.: M201U3 - L01
Tentative
1. GENERAL DESCRIPTION
1.1 OVERVIEW
M201U3 - L01 is a 20.1" TFT Liquid Crystal Display module with a 6-CCFL backlight unit and a 2ch-LVDS
interface. This module supports 1600 x 1200 UXGA mode and can display 16.7M colors. The inverter
module for Backlight is not built in.
1.2 FEATURES
- Wide viewing angle
- High contrast ratio
- Fast response time
- High color saturation
- UXGA (1600 x 1200 pixels) resolution
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
1.3 APPLICATION
- TFT LCD Monitor
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 408.0(H) x 306.0 (V) (20.1" diagonal) mm
(1)
Bezel Opening Area 413.0 (H) x 311.0 (V) mm
Driver Element a-si TFT active matrix - -
Pixel Number 1600 x R.G.B. x 1200 pixel -
Pixel Pitch 0.255 (H) x 0.255 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 16.7 M color -
Display Operation Mode Transmissive mode / Normally black - -
Surface Treatment Hard coating(2H), Anti-glare (Haze 25) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) (431.5) 432.0 (432.5) mm
Module Size Vertical(V) (331.0) 331.5 (332.0) mm (1), (2)
Depth(D) TBD 25 mm
Weight (3700) TBD g -
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Note (2) Module Depth does not include connectors.
4 / 21
The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 0.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec. 26, 2002
Model No.: M201U3 - L01
Tentative
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
Storage Temperature TST -20 +60 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
