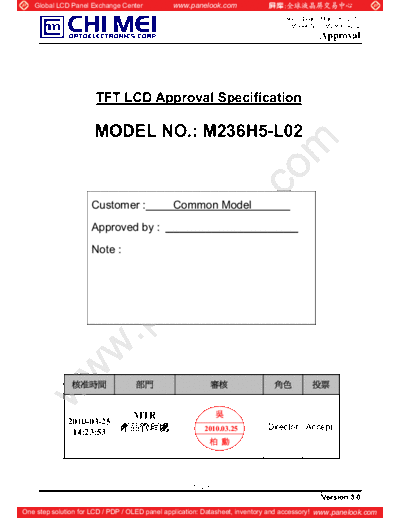

Image preview - the first page of the document
![Panel_CMO_M236H5-L02_0_[DS]](/pics/5c8eca69a615e.gif)
>> Download Panel_CMO_M236H5-L02_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Mar. 18, 2010
Model No.: M236H5-L02
Approval
TFT LCD Approval Specification
MODEL NO.: M236H5-L02
Customer : Common Model
Approved by :
Note :
MTR
2010-03-25
2010.03.25 Director Accept
14:23:53
1 / 29
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Mar. 18, 2010
Model No.: M236H5-L02
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.1.1 TFT LCD MODULE
3.1.2 Vcc POWER DIP CONDITION
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE (INPUT SIGNAL)
5.2 TFT LCD MODULE (POWER)
5.3 LVDS DATA MAPING TABLE
5.4 PIXEL FORMAT IMAGE
5.5 BACKLIGHT UNIT
5.6 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 16
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 19
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PACKAGING ------------------------------------------------------- 22
8.1 PACKING SPECIFICATIONS
8.2 PACKING METHOD
9. DEFINITION OF LABELS ------------------------------------------------------- 24
9.1 CMO MODULE LABEL
10. RELIABILITY TEST ------------------------------------------------------- 26
11. PRECAUTIONS ------------------------------------------------------- 26
12. MECHANICAL CHARACTERISTICS ------------------------------------------------------- 28
2 / 29
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Mar. 18, 2010
Model No.: M236H5-L02
Approval
REVISION HISTORY
Version Date Page Description
Ver 2.0 Nov, 11, `09 All M236H5-L02 Approval specifications was first issued.
Ver 2.1 Dec, 18, `09 26 Mod Altitude Test to be 40,000 ft / 24 hours @ Non-Operation
Ver 3.0 Mar, 18, `10 7 Mod 3.1.1 Electrical Characteristics of Rush Current (From 3A to 5A)
7 Mod 3.1.1 Electrical Characteristics of Logic Voltage (Add VIH max. & VIL min.)
19 Mod 7.2 Optical Specifications: Instrument change from CS-1000T to CS-2000
29 Mod Drawing Remark of LVDS Connector from FI-R51S to FI-RE51S
3 / 29
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Mar. 18, 2010
Model No.: M236H5-L02
Approval
1. GENERAL DESCRIPTION
1.1 OVERVIEW
M236H5-L02 is a 23.6" TFT Liquid Crystal Display module with 4 CCFL Backlight unit. A 15-pin power
interface and a 51-pin 4ch-LVDS interface. This module supports 1920 x 1080 Full HD mode and can
display up to 16.7M colors. The inverter module for Backlight is not built in.
1.2 FEATURES
- Extra-wide viewing angle
- High contrast ratio
- Fast response time
- High color saturation
- Full HD (1920 x 1080 pixels) resolution
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
- Double frame rate (120Hz)
- RoHS compliance.
1.3 APPLICATION
- TFT LCD Monitor
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 521.28(H) x 293.22(V) (23.6" diagonal) mm
(1)
Bezel Opening Area 525.22 (H) x 297.22 (V) mm
Driver Element a-Si TFT active matrix - -
Pixel Number 1920 x R.G.B. x 1080 pixel -
Pixel Pitch 0.2715 (H) x 0.2715 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 16.7M color -
Transmissive Mode Normally White - -
Surface Treatment AG type, 3H hard coating, Haze 25 - -
Module Power Consumption 32.37 Watt (2)
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 544.3 544.8 545.3 mm
Module Size Vertical(V) 320.0 320.5 321.0 mm (1)
Depth(D) 18.2 18.7 19.2 mm
Weight - 2880 2930 g -
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Note (2) Please refer to sec.3.1 & 3.2 for more information of power consumption
4 / 29
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Mar. 18, 2010
Model No.: M236H5-L02
Approval
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
