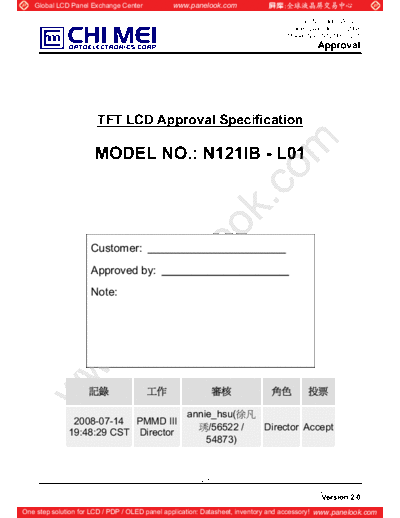

Image preview - the first page of the document
![Panel_CMO_N121IB-L01_2_[DS]](/pics/5c8ecb98dcc5c.gif)
>> Download Panel_CMO_N121IB-L01_2_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Doc No.: 4407Z602
Issued Date: Jul, 02, 2008
Model No.: N121IB - L01
Approval
TFT LCD Approval Specification
MODEL NO.: N121IB - L01
Customer:
Approved by:
Note:
annie_hsu(
2008-07-14 PMMD III
/56522 / Director Accept
19:48:29 CST Director
54873)
1 / 29
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Doc No.: 4407Z602
Issued Date: Jul, 02, 2008
Model No.: N121IB - L01
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 10
4.1 TFT LCD MODULE
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11
5.1 TFT LCD MODULE
5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.3 COLOR DATA INPUT ASSIGNMENT
5.4 EDID DATA STRUCTURE
6. CONVERTER SPECIFICATION ------------------------------------------------------- !
6.1 CONNECTOR TYPE
6.2 INPUT CONNECTOR PIN ASSIGNMENT
6.3 INPUT ELECTRICAL CHARACTERISTICS OF CONVERTER
7. INTERFACE TIMING ------------------------------------------------------- 18
INPUT SIGNAL TIMING SPECIFICATIONS
7.2 POWER ON/OFF SEQUENCE
8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 20
8.1 TEST CONDITIONS
8.2 OPTICAL SPECIFICATIONS
9. PRECAUTIONS ------------------------------------------------------- 24
9.1 HANDLING PRECAUTIONS
9.2 STORAGE PRECAUTIONS
9.3 OPERATION PRECAUTIONS
10. PACKING ------------------------------------------------------- 25
10.1 CARTON
10.2 PALLET
11. DEFINITION OF LABELS ------------------------------------------------------- 27
11.1 CMO MODULE LABEL
11.2 CARTON LABEL
2 / 29
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Doc No.: 4407Z602
Issued Date: Jul, 02, 2008
Model No.: N121IB - L01
Approval
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 2.0 July. 02, '08 All All Approval specification first issued.
3 / 29
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Doc No.: 4407Z602
Issued Date: Jul, 02, 2008
Model No.: N121IB - L01
Approval
1 GENERAL DESCRIPTION
1.1 OVERVIEW
N121IB-L01 is a 12.1" TFT Liquid Crystal Display module with LED Backlight unit and 20 pins LVDS
interface. This module supports 1280 x 800 Wide-XGA mode and can display 262,144 colors. The optimum
viewing angle is at 6 o'clock direction. The converter module for Backlight is built in.
1.2 FEATURES
4 / 29
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Doc No.: 4407Z602
Issued Date: Jul, 02, 2008
Model No.: N121IB - L01
Approval
- Thin and light.
- WXGA (1280 x 800 pixels) resolution
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
- Meet RoHS requirement
- LED Backlight
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 261.12 (H) x 163.2 (V) (12.1" diagonal) mm
(1)
Bezel Opening Area 263.67 (H) x 165.75 (V) mm
Driver Element a-si TFT active matrix - -
Pixel Number 1280 x R.G.B. x 800 pixel -
Pixel Pitch 0.204 (H) x 0.204 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 262,144 color -
Transmissive Mode Normally white - -
Surface Treatment Hard coating (3H), Anti-glare type - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 275.3 275.8 276.3 mm
Module Size Vertical(V) 179 179.5 180 mm (1)
Depth(D) - 4.7 5.0 mm
Weight - 215 230 g (2)
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
(2) Max weight including converter.
2 ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
