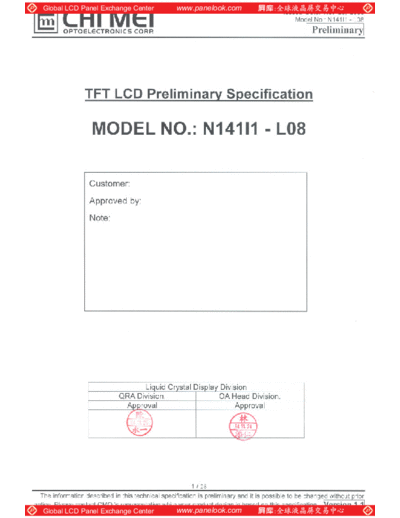

Image preview - the first page of the document
![Panel_CMO_N141I1-L08_0_[DS]](/pics/5c8ece0b3a2c8.gif)
>> Download Panel_CMO_N141I1-L08_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Nov 23, 2005
Model No.: N141I1 - L08
Preliminary
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
6. INTERFACE TIMING ------------------------------------------------------- 18
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 20
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 24
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 25
9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS ------------------------------------------------------- 27
10.1 CMO MODULE LABEL
10.2 CMO CARTON LABE
2 / 28
The information described in this technical specification is preliminary and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Nov 23, 2005
Model No.: N141I1 - L08
Preliminary
REVISION HISTORY
Page
Version Date Section Description
(New)
1.0 Aug 26,'05 All All Preliminary specification was first issued.
1.1 Nov 23,'05 4 1.5 Update weight spec from 400g typical to 395g typical.
6 2.2.2 Define lamp currency and frequency
7 3.1 Define power supply current at while and black pattern. Update EBL.
9 3.2 Define backlight unit basic parameters
15~17 5.5 Update EDID Code
18 6.1 Update DE signal
20 7.2 Update optical specification
3 / 28
The information described in this technical specification is preliminary and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Nov 23, 2005
Model No.: N141I1 - L08
Preliminary
1 GENERAL DESCRIPTION
1.1OVERVIEW
N141I1 - L08 is a 14.1" TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1280 x 800 WXGA mode and can display 262,144 colors. The
optimum viewing angle is at 6 o'clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and Light Weight
- WXGA (1280 x 800 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
- RoHS Compliance
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 303.36(H) X 189.6(V) mm
(1)
Bezel Opening Area 306.76 (H) x 192.8 (V) mm
Driver Element a-si TFT active matrix - -
Pixel Number 1280 x R.G.B. x 800 pixel -
Pixel Pitch 0.237 (H) x 0.237 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 262,144 color -
Transmissive Mode Normally white - -
Surface Treatment Glare, Reflection 2%,3H - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 319 319.5 320 mm
Module Size Vertical(V) 205 205.5 206 mm (1)
Depth(D) -- 5.2 5.5 mm
Weight without inverter -- 395 410 g
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions
4 / 28
The information described in this technical specification is preliminary and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 1.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Nov 23, 2005
Model No.: N141I1 - L08
Preliminary
2 ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
Storage Temperature TST -20 +60 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
