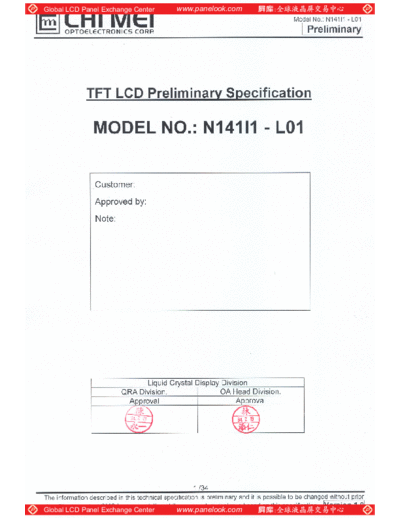

Image preview - the first page of the document
![Panel_CMO_N141I1-L01_1_[DS]](/pics/5c8ecddb45291.gif)
>> Download Panel_CMO_N141I1-L01_1_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul 15, 2005
Model No.: N141I1 - L01
Preliminary
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 4
1. GENERAL DESCRIPTION ------------------------------------------------------- 5
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 6
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 8
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 12
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 13
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
6. INVERTER SPECIFICATION ------------------------------------------------------- 19
6.1 TYPE OF INVERTER CONNECTOR
6.2 BUILT-IN INVERTER INPUT PIN ASSIGNMENT
6.2 BUILT-IN INVERTER OUTPUT PIN ASSIGNMENT
6.4 GENERAL ELECTRICAL SPECIFICATION
7. INTERFACE TIMING ------------------------------------------------------- 23
7.1 INPUT SIGNAL TIMING SPECIFICATIONS
7.2 POWER ON/OFF SEQUENCE
8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 25
8.1 TEST CONDITIONS
8.2 OPTICAL SPECIFICATIONS
9. PRECAUTIONS ------------------------------------------------------- 29
9.1 HANDLING PRECAUTIONS
9.2 STORAGE PRECAUTIONS
9.3 OPERATION PRECAUTIONS
10. PACKING ------------------------------------------------------- 30
10.1 CARTON
10.2 PALLET
2 /34
The information described in this technical specification is preliminary and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul 15, 2005
Model No.: N141I1 - L01
Preliminary
11. DEFINITION OF LABELS ------------------------------------------------------- 32
11.1 CMO MODULE LABEL
11.2 CMO CARTON LABE
11.3 CARTON LABEL
11.4 PALLET LABEL
3 /34
The information described in this technical specification is preliminary and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul 15, 2005
Model No.: N141I1 - L01
Preliminary
REVISION HISTORY
Page
Version Date Section Description
(New)
0.0 Feb, 01,'05 All All Tentative specification was first issued.
1.0 Jul, 15, `05 All All Preliminary specification was first issued.
4 /34
The information described in this technical specification is preliminary and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul 15, 2005
Model No.: N141I1 - L01
Preliminary
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N141I1 - L01 is a 14.1" TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1280 x 800 XGA mode and can display 262,144 colors. The optimum
viewing angle is at 6 o'clock direction. The inverter module for Backlight is built in.
1.2 FEATURES
- Thin and Light Weight
- WXGA (1280 x 800 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 303.36(H) X 189.6(V) mm
(1)
Bezel Opening Area 306.76 (H) x 193 (V) mm
Driver Element a-si TFT active matrix - -
Pixel Number 1280 x R.G.B. x 800 pixel -
Pixel Pitch 0.237 (H) x 0.237 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 262,144 color -
Transmissive Mode Normally white - -
Surface Treatment Anti-glare , Haze 26,3H - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 319 319.5 320 mm
Module Size Vertical(V) 205 205.5 206 mm (1)
Depth(D) -- 5.2 5.5 mm
-- 425 440 g (2)
Weight
-- 435 450 g (3)
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Note (2) Weight without inverter.
Note (3) Weight with inverter.
5 /34
The information described in this technical specification is preliminary and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul 15, 2005
Model No.: N141I1 - L01
Preliminary
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
Storage Temperature TST -20 +60 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
