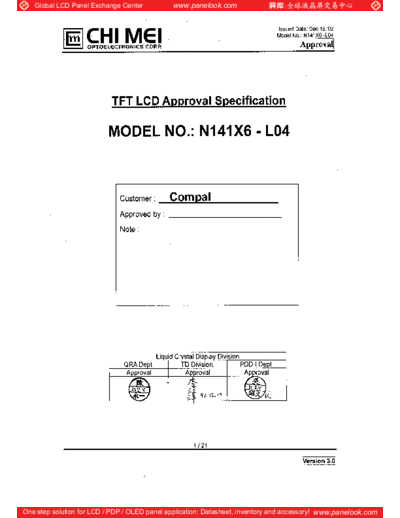

Image preview - the first page of the document
![Panel_CMO_N141X6-L04_0_[DS]](/pics/5c8ece65a3e33.gif)
>> Download Panel_CMO_N141X6-L04_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec.16.'02
Model No.: N141X6 -L04
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 10
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 13
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 15
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 19
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
8.2 SAFETY PRECAUTIONS
9. PACKING ------------------------------------------------------- 20
9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS ------------------------------------------------------- 21
10.1 CMO MODULE LABEL
10.2 CARTON LABEL
2 / 21
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec.16.'02
Model No.: N141X6 -L04
Approval
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 3.0 Dec.16.'02 All All Approval Specification was first issued for Compal.
( Copy from N141X6-L01 without L-plate )
3 / 21
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec.16.'02
Model No.: N141X6 -L04
Approval
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N141X6- L04 is a 14.1" TFT Liquid Crystal Display module with single CCFL Backlight unit and 20 pins
LVDS interface. This module supports 1024 x 768 XGA mode and can display 262,144 colors. The optimum
viewing angle is at 6 o'clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and light weight and high brightness
- XGA (1024 x 768 pixels) resolution
- DE (Data Enable) only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 285.7 (H) x 214.3 (V) (14.1" diagonal) mm
(1)
Bezel Opening Area 288.9 (H) x 217.5 (V) mm
Driver Element a-si TFT active matrix - -
Pixel Number 1024 x R.G.B. x 768 pixel -
Pixel Pitch 0.279 (H) x 0.279 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 262,144 color -
Transmissive Mode Normally white - -
Surface Treatment Hardness (3H), Anti-glare (Haze 25) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 298.0 298.5 299.0 mm
Module Size Vertical(V) 226.0 226.5 227.0 mm (1)
Depth(D) - 5.2 5.5 mm
Weight - 470 485 g -
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
4 / 21
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec.16.'02
Model No.: N141X6 -L04
Approval
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
Storage Temperature TST -20 +60 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
