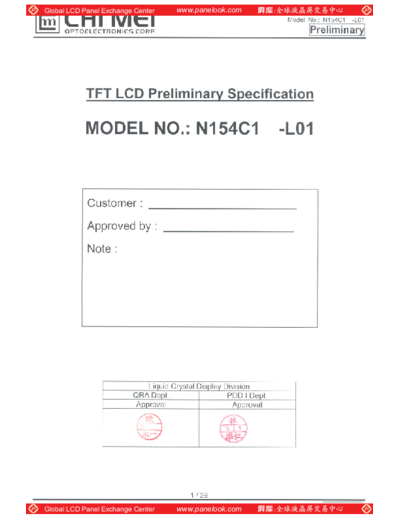

Image preview - the first page of the document

>> Download Panel_CMO_N154C1-L01_0_[DS] documenatation <<

Text preview - extract from the document

Global LCD Panel Exchange Center www.panelook.com

Global LCD Panel Exchange Center www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec.05, 2005
Model No.: N154C1 -L01
Preliminary

- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 6
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 8
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM ------------------------------------------------------- 13
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 14
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE

6. INTERFACE TIMING ------------------------------------------------------- 20
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 22
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS

8. PRECAUTIONS ------------------------------------------------------- 26
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS

9. PACKING ------------------------------------------------------- 27
9.1 CARTON
9.2 PALLET

10. DEFINITION OF LABELS ------------------------------------------------------- 28
10.1 CMO MODULE LABEL
10.2 CARTON LABEL

2 / 29
Version 1.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec.05, 2005
Model No.: N154C1 -L01
Preliminary

REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 0.0 Aug. 30. `05 All All Tentative specification first issued.
Ver 1.0 Oct. 13. `05 All All Preliminary specification first issued.
4. 1.4. Modify Surface Treatment
10. 3.2 Modify BACKLIGHT UNIT spec.
17~19 5.5 Modify EDID DATA STRUCTURE
22. 7.2. Modify OPTICAL SPECIFICATIONS
27. 9. Packing specification changed.
Ver 1.1 Dec. 05. `05 All All Preliminary specification updated.
6. 2.1 Modify ABSOLUTE RATINGS OF ENVIRONMENT.
7. 2.2 Modify 2.2.2 BACKLIGHT UNIT
10. 3.2 Modify 3.2 BACKLIGHT UNIT
22. 7.2 Modify 7.2 OPTICAL SPECIFICATIONS
28. 10.2 Modify 10.2 CARTON LABEL

3 / 29
Version 1.1

1 GENERAL DESCRIPTION
1.1 OVERVIEW
N154C1 -L01 is a 15.4" TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1440 x 900 XGA mode and can display 262,144 colors. The optimum
viewing angle is at 6 o'clock direction. The inverter module for Backlight is not built in.

1.2 FEATURES
- Thin and light weight
- WXGA+ (1440 x 900 pixels) resolution
- DE (Data Enable) only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2 pixel/clock
- Support EDID Structure Version 1.3

1.3 APPLICATION
- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Outline Dimension 344(W) x 222 (H) mm
Active Area 331.56 (H) x 207.225 (V) mm (1)
Bezel Opening Area 335 (H) x 210.7 (V) mm
Driver Element a-si TFT active matrix - -
Pixel Number 1440 x R.G.B. x 900 pixel -
Pixel Pitch 0.23025 (H) x 0.23025 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 262,144 color -
Transmissive Mode Normally white - -
Surface Treatment Hardness (3H), Glare ,Reflection=1.2 % - -

1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 343.5 344 344.5 mm
Module Size Vertical(V) 221.5 222 222.5 mm (1)
Depth(D) --- --- 6.2 mm
Weight --- 530 540 g -
I/F connector mounting position The mounting inclination of the connector makes the screen (2)
center within
