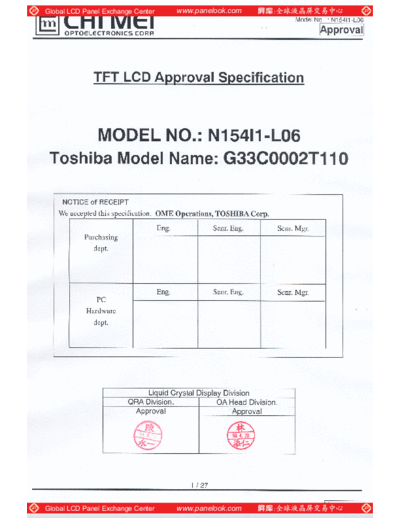

Image preview - the first page of the document
![Panel_CMO_N154I1-L06_0_[DS]](/pics/5c8ed009131cb.gif)
>> Download Panel_CMO_N154I1-L06_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Apr.20, 2005
Model No. : N154I1-L06
Approval
CONTENTS
REVISION HISTORY
GENERAL DESCRIPTION
1. ABSOLUTE MAXIMUM RATINGS
1.1 ABSOLUTE RATING OF ENVIRONMENT
1.2 ELECTRICAL ABSOLUTE RATINGS
1.3 MECHANICAL RATINGS
1.4 THE OTHERS
2. ELECTRICAL SPECIFICATIONS
2.1 TFT LCD MODULE
2.2 BACKLIGHT UNIT
2.3 MATERIAL LIST CONCERNING EMI REGULATIONS
3. INTERFACE SPECIFICATIONS
3.1 THE PIN ASSIGNMENT OF LVDS INTERFACE CONNECTOR
3.2 INPUT SIGNAL TIMING SPECIFICATIONS
3.3 COLOR DATA INPUT ASSIGNMENT
3.4 POWER UP/DOWN SEQUENCE
4. OPTICAL SPECIFICATIONS
4.1 TEST CONDITIONS
4.2 OPTICAL SPECIFICATIONS
5. MECHNICAL DRAWING
6. PRECAUTION
6.1 ASSEMBLY AND HANDLING PRECAUTION
6.2 SAFTY PRECAUTION
7. PACKING
7.1 PACKING SPECIFICATIONS
7.2 PACKING METHOD
8. DEFINITION OF SHIPPING LABEL ON MODULE
Attached 1, Outline Drawing
2 / 27
Version 3.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Apr.20, 2005
Model No. : N154I1-L06
Approval
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 3.0 Mar. 24,'05 All All Approval Specification was first issued.
Ver 3.1 Apr. 20,'05 9 2.2 Modify Startup Voltage from 1530(0 oC) to 1400 (0 oC).
15 3.4.1 Modify t6 from 200ms to 0ms.
26 Modify total length of lamp wire to 94 +/- 5mm.
3 / 27
Version 3.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Apr.20, 2005
Model No. : N154I1-L06
Approval
GENERAL DESCRIPTION
OVERVIEW
This is a 15.4" TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins LVDS interface. This
module supports 1280 x 800 WXGA mode and can display 262,144 colors. The optimum viewing angle is at 6 o'clock
direction. The inverter module for Backlight is not built in.
BLOCK DIAGRAM
SCAN DRIVER IC
Rxin1(+/-) LVDS INPUT /
TIMING CONTROLLER TFT LCD PANEL
(JAE-FI-XB30SL-HF10)
Rxin2(+/-)
INPUT CONNECTOR
(1280x3x800)
CLK(+/-)
Vcc
GND DC/DC CONVERTER &
REFERENCE VOLTAGE
DataEDID GENERATOR DATA DRIVER IC
CLKEDID
EDID
VEDID
EEPROM
VL LAMP CONNECTOR
(JST-BHSR-02VS-1) BACKLIGHT UNIT
APPLICATION
-Note Book PC
GENERAL SPECIFICATI0NS
Item Specifications Unit
Screen Size 15.4 Diagonal inch
Bezel opening area 335.0 (H) x 210.7 (V) mm
Effective display area 331.2 (H) x 207.0 (V) mm
Pixel number 1280 x R.G.B x 800 pixel
Pixel pitch 0.2588 (H) x 0.2588 (V) mm
Pixel Arrangement R.G.B Vertical Stripe -
Display Color 6 bits, 262,144 color
Transmissive mode Normally white -
Surface treatments Hardness (2H), Glare -
MECHANICAL SPECIFICATIONS
ITEM MIN. TYP. MAX. Unit Note
Module Horizontal 343.5 344.0 344.5 mm -
Size Vertical 221.5 222.0 222.5 mm -
Depth - 6.2 6.5 mm (1)
Weight - 600 620 g -
Note 1: The maximum thickness of I/O connector area is 6.5mm.
4 / 27
Version 3.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Apr.20, 2005
Model No. : N154I1-L06
Approval
1. ABSOLUTE MAXIMUM RATINGS
1.1 ABSOLUTE RATING OF ENVIRONMENT
Item Symbol Min. Max. Unit Note
Operating Ambient Temperature TOP 0 +50 qC -
Operating Temperature for Panel - 0 +60 qC (2)
Storage Temperature TSTG -20 +60 qC -
Operating Ambient Humidity HOP 20 90 %RH (1)
Storage Humidity HSTG 10 90 %RH (1)
Air Pressure - 70.0 - kPa Operation
Air Pressure - 12.0 - kPa Non-Operation
Altitude - - 4572 m Operation
Altitude - - 15240 m Non-Operation
Note. (1) Wet bulb temperature should be 39qC Max, and no condensation of water.
(2) The surface temperature caused by self-heat radiation of cell itself is specified on this item.
1.2 ELECTRICAL ABSOLUTE RATINGS
(1) TFT LCD Module
Values
Parameter Symbol Unit Remarks
Min. Max.
Power supply voltage VCC -0.3 +4.0 V
