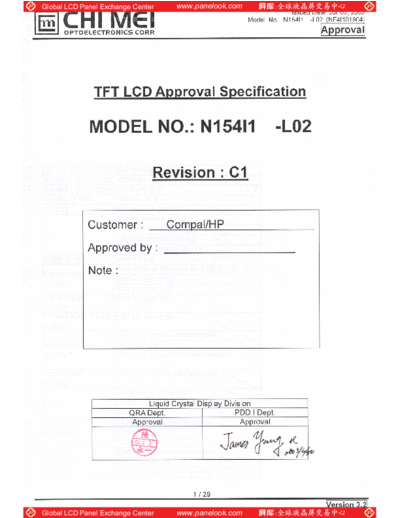

Image preview - the first page of the document
![Panel_CMO_N154I1-L02_0_[DS]](/pics/5c8ecffd596d3.gif)
>> Download Panel_CMO_N154I1-L02_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul. 02, 2003
Model No.: N154I1 -L02 (NF4I101904)
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 10
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
5.6 EDID SIGNAL SPECIFICATION
6. INTERFACE TIMING ------------------------------------------------------- 19
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 21
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 25
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 26
9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS ------------------------------------------------------- 28
10.1 CMO MODULE LABEL
10.2 CARTON LABEL
2 / 29
Version 3.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul. 02, 2003
Model No.: N154I1 -L02 (NF4I101904)
Approval
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 0.1 Oct. 24,'02 All All Tentative specification first issued.
Ver 1.0 Jan. 30,'03 7 3.1 Modify power supply current from TBD to certain value.
8 3.2 Modify backlight unit
Lamp input voltage from TBD to 675 (typ)
Lamp turn on voltage of 25 deg C from 999 to 1030
Lamp turn on voltage of 0 deg C from 2222 to 1290
Power consumption from 4.5 to 4.39
11 5.1 Modify input pin assignment
14 5.5 Modify EDID data structure
17 5.6 Add EDID signal specification
19 6.1 Modify clock frequency from 65 to 69.5 (typ)
Modify Vsync frequency to 60
Modify Hsync frequency to 48.9
Modify Frame frequency to 860 (typ)
Modify Vertical active display term to 800 (typ)
Modify one line scanning time to 1424 (typ)
Modify horizontal active display term to 1280 (typ)
21 7.2 Modify color chromaticity
26 9 Modify packing drawing
Ver 2.0 Apr. 22,'03 4 1.4 Modify polarizer surface treatment (Haze)
8 3.2 From 40 to 25
Modify the color of CCFL cable
HV : From white to Pink
12 5.2 LV : From black to White
21 7.0 Modify the color of CCFL cable
Modify inverter part number.
From Sumida-H05-4783B to Sumida-H05-4915
Ver 3.0 May. 15, `03 - - Issue approval SPEC to 3.0 for customer
Ver 3.1 May. 20,'03 - Cover Add revision C1 and CMO internal part number (NF4I101904)
Ver 3.2 Jul. 02,`03 26 9.1 Add packing test criteria
3 / 29
Version 3.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul. 02, 2003
Model No.: N154I1 -L02 (NF4I101904)
Approval
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N154I1 -L02 is a 15.4" TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins
LVDS interface. This module supports 1280 x 800 Wide-XGA mode and can display 262,144 colors. The
optimum viewing angle is at 6 o'clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and light weight
- WXGA (1280 x 800 pixels) resolution
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 331.2 (H) x 207.0 (V) (15.4" diagonal) mm
(1)
Bezel Opening Area 335.0 (H) x 210.7 (V) mm
Driver Element a-si TFT active matrix - -
Pixel Number 1280 x R.G.B. x 800 pixel -
Pixel Pitch 0.2588 (H) x 0.2588 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 262,144 color -
Transmissive Mode Normally white - -
Surface Treatment Hard coating (3H), Anti-glare (Haze 25) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 343.5 344.0 344.5 mm
Module Size Vertical(V) 221.5 222.0 222.5 mm (1)
Depth(D) - 6.2 6.5 mm
Weight - 560 585 g -
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
4 / 29
Version 3.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jul. 02, 2003
Model No.: N154I1 -L02 (NF4I101904)
Approval
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
