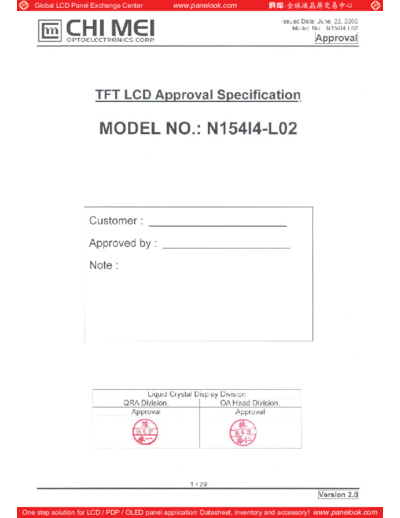

Image preview - the first page of the document
![Panel_CMO_N154I4-L02_2_[DS]](/pics/5c8ed12ea0b6c.gif)
>> Download Panel_CMO_N154I4-L02_2_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: June. 22, 2006
Model No.: N154I4-L02
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 10
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
5.6 EDID SIGNAL SPECIFICATION
6. INTERFACE TIMING ------------------------------------------------------- 19
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 21
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 25
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 26
9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS ------------------------------------------------------- 28
10.1 CMO MODULE LABEL
10.2 CARTON LABEL
2 / 29
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: June. 22, 2006
Model No.: N154I4-L02
Approval
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 0.0 Mar.15, 2006 All All Tentative specification first issued.
Ver1.0 May 8, 2006 All All Preliminary specification first issued
Ver2.0 June 22,2006 All All Approval specification first issued
3 / 29
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: June. 22, 2006
Model No.: N154I4-L02
Approval
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N154I4-L02 is a 15.4" TFT Liquid Crystal Display module with 2 CCFLs Backlight unit and 30 pins LVDS
interface. This module supports 1280 x 800 Wide-XGA mode and can display 262,144 colors. The optimum
viewing angle is at 6 o'clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and light weight
- WXGA (1280 x 800 pixels) resolution
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 331.2 (H) x 207.0 (V) (15.4" diagonal) mm
(1)
Bezel Opening Area 335.0 (H) x 210.7 (V) mm
Driver Element a-si TFT active matrix - -
Pixel Number 1280 x R.G.B. x 800 pixel -
Pixel Pitch 0.2588 (H) x 0.2588 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 262,144 color -
Transmissive Mode Normally white - -
Surface Treatment Hard coating (3H), Glare - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 343.5 344.0 344.5 mm
Module Size Vertical(V) 223.5 224.0 224.5 mm (1)
Depth(D) - 6.2 6.5 mm
Weight - 565 580 g -
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
4 / 29
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: June. 22, 2006
Model No.: N154I4-L02
Approval
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
