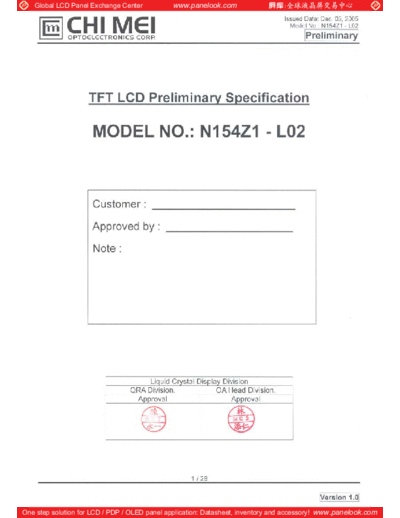

Image preview - the first page of the document
![Panel_CMO_N154Z1-L02_0_[DS]](/pics/5c8ed183d5b15.gif)
>> Download Panel_CMO_N154Z1-L02_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec. 05, 2005
Model No.: N154Z1 - L02
Preliminary
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.5 EDID DATA STRUCTURE
5.6 EDID SIGNAL SPECIFICATION
6. INTERFACE TIMING ------------------------------------------------------- 20
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 22
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 25
8.1 ASSEMBLY AND HANDLING PRECAUTIONS
8.2 SAFETY PRECAUTIONS
9. PACKING ------------------------------------------------------- 26
9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS ------------------------------------------------------- 27
10.1 CMO MODULE LABEL
10.2 CMO CARTON LABEL
11. OUTLINE DIMENSION DRAWING ------------------------------------------------------- 28
2 / 28
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec. 05, 2005
Model No.: N154Z1 - L02
Preliminary
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 0.0 Apr. 28,'05 All All Tentative Specification was first issued.
Ver 1.0 Dec.05,'05 All All Preliminary Specification was first issued.
3 / 28
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec. 05, 2005
Model No.: N154Z1 - L02
Preliminary
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N154Z1 - L01 is a 15.4" TFT Liquid Crystal Display module with two CCFLs Backlight unit and 30 pins
LVDS interface. This module supports 1680 x 1050 Wide-WSXGA+ mode and can display 262,144 colors.
The optimum viewing angle is at 6 o'clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and High Brightness
- WSXGA+ (1680 x 1050 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 2.5V logic operation
- Single CCFL
- Meet Rohs requirement
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 331.128 (H) x 206.955 (V) (15.4 inch Diagonal) mm
(1)
Bezel Opening Area 335 (H) x 210.7 (V) mm
Driver Element a-si TFT active matrix - -
Pixel Number 1680 x 3 (RGB) x 1050 pixel -
Pixel Pitch 0.1971 x 0.1971 mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 262,144 color -
Transmissive Mode Normally white - -
Surface Treatment Glare (2H) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal (H) 343.5 344 344.5 mm
Module Size Vertical (V) 221.5 222 222.5 mm (1)
Depth (D) --- 6.2 6.5 mm
Weight --- 580 595 g -
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
4 / 28
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Dec. 05, 2005
Model No.: N154Z1 - L02
Preliminary
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Value
Item Symbol Unit Note
Min. Max.
