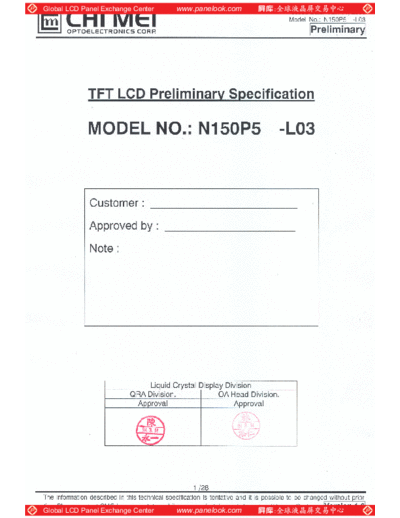

Image preview - the first page of the document
![Panel_CMO_N150P5-L03_0_[DS]](/pics/5c8eceea22fba.gif)
>> Download Panel_CMO_N150P5-L03_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Mar. 14, 2005
Model No.: N150P5 -L03
Preliminary
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 9
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 10
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
5.6 EDID SIGNAL SPECIFICATION
6. INTERFACE TIMING ------------------------------------------------------- 18
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 20
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 24
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 25
9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS ------------------------------------------------------- 26
10.1 CMO MODULE LABEL
10.2 CARTON LABEL
2 /28
The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Mar. 14, 2005
Model No.: N150P5 -L03
Preliminary
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 1.0 Mar. 14. `05 All All Preliminary specification first issued.
3 /28
The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Mar. 14, 2005
Model No.: N150P5 -L03
Preliminary
1. GENERAL DESCRIPTION
1.1 OVERVIEW
N150P5 is a 15.0" TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins LVDS
interface. This module supports 1400x 1050 SXGA+ mode and can display 262,144 colors. The optimum
viewing angle is at 6 o'clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- Thin and light weight
- SXGA+ (1400 x 1050 pixels) resolution
- DE (Data Enable) only mode
- 2 channel 3.3V LVDS (Low Voltage Differential Signaling) interface
- Support EDID Structure Version 1 Revision 3
1.3 APPLICATION
- TFT LCD Notebook
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 304.5 (H) x 228.375 (V) (15" diagonal) mm
(1)
Bezel Opening Area 308.1 (H) x 232 (V) mm
Driver Element a-si TFT active matrix - -
Pixel Number 1400 x R.G.B. x 1050 pixel -
Pixel Pitch 0.2175 (H) x 0.2175 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 262,144 color -
Transmissive Mode Normally white - -
Surface Treatment Hard coating (2H), glare type - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 316.8 317.3 317.8 mm
Module Size Vertical(V) 241.5 242.0 242.5 mm (1)
Depth(D) - 5.7 6.0 mm
Weight - 530 550 g -
I/F connector mounting position The mounting inclination of the connector makes the screen (2)
