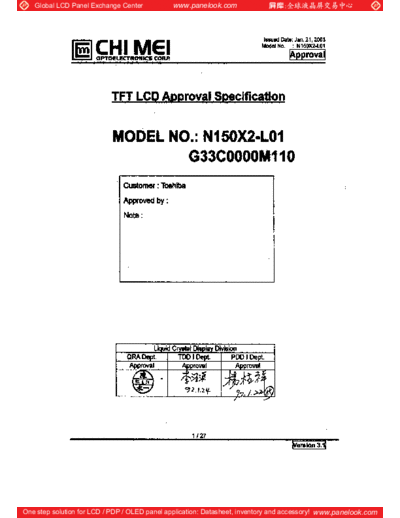

Image preview - the first page of the document
![Panel_CMO_N150X2-L01_0_[DS]](/pics/5c8ecf0565a1e.gif)
>> Download Panel_CMO_N150X2-L01_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jan. 21, 2003
Model No. : N150X2-L01
Approval
CONTENTS
REVISION HISTORY
GENERAL DESCRIPTION
1. ABSOLUTE MAXIMUM RATINGS
1.1 ABSOLUTE RATING OF ENVIRONMENT
1.2 ELECTRICAL ABSOLUTE RATINGS
1.3 MECHANICAL RATINGS
1.4 THE OTHERS
2. ELECTRICAL SPECIFICATIONS
2.1 TFT LCD MODULE
2.2 BACKLIGHT UNIT
2.3 MATERIAL LIST CONCERNING EMI REGULATIONS
3. INTERFACE SPECIFICATIONS
3.1 THE PIN ASSIGNMENT OF LVDS INTERFACE CONNECTOR
3.2 INPUT SIGNAL TIMING SPECIFICATIONS
3.3 COLOR DATA INPUT ASSIGNMENT
3.4 POWER UP/DOWN SEQUENCE
4. OPTICAL SPECIFICATIONS
4.1 TEST CONDITIONS
4.2 OPTICAL SPECIFICATIONS
5. MECHNICAL DRAWING
6. PRECAUTION
6.1 ASSEMBLY AND HANDLING PRECAUTION
6.2 SAFTY PRECAUTION
7. PACKING
7.1 PACKING SPECIFICATIONS
7.2 PACKING METHOD
8. DEFINITION OF SHIPPING LABEL ON MODULE
Attached 1, Drawing
Attached 2, TFT LCD Inspection Specification
2 / 27
Version 3.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jan. 21, 2003
Model No. : N150X2-L01
Approval
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 3.0 Dec. 30,'02 Final approval sheet is released.
Ver 3.1 Jan. 21, `03 9 2.2 Revise connector PN to be
Note (1) Connector PN.: BHTR-02VS-1 or equivalent
Note (2) User's connector Part No.: SM02B-BHTS-B-TB or
equivalent
Remove Page 28~ Outgoing inspection Criteria
3 / 27
Version 3.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jan. 21, 2003
Model No. : N150X2-L01
Approval
GENERAL DESCRIPTION
OVERVIEW
This product is a 15" TFT Liquid Crystal Display Module with a Backlight unit and 30 pins LVDS (Low Voltage
Differential Signal) interface. This module supports 1024 x 768 XGA mode and can display 262,144 colors. The
inverter module for Backlight is not built in.
BLOCK DIAGRAM
Rxin0(+/-)
LVDS INPUT /
SCAN DRIVER IC
Rxin1(+/-) TIMING CONTROLLER
TFT LCD PANEL
(JAE-FI-XB30S-HF10)
Rxin2(+/-)
INPUT CONNECTOR
(1024xR.G.B.x768)
CLK(+/-)
Vcc
GND DC/DC CONVERTER &
REFERENCE VOLTAGE
DataEDID GENERATOR DATA DRIVER IC
CLKEDID
EDID
VEDID
EEPROM
VL LAMP CONNECTOR
(JST-BHTR-02VS-1) BACKLIGHT UNIT
APPLICATION
-Note Book PC
GENERAL SPECIFICATI0NS
Item Specifications Unit
Screen Size 15.0 Diagonal inch
Bezel opening area 307.6(W)x231.6(H) mm
Effective display area 304.1(W)x228.1(H) mm
Pixel number 1024 x R.G.B x768 pixel
Pixel pitch 0.297(H) x 0.297(V) mm
Pixel Arrangement R.G.B Vertical Stripe -
Display Color 6 bits, 262,144 color
Transmissive mode Normally white -
Surface treatments Hard coating (3H) and Anti-glare (Haze 25%) -
MECHANICAL SPECIFICATIONS
ITEM MIN. TYP. MAX. Unit Note
Module Horizontal 315.5 315.8 316.1 mm -
Size Vertical 240.2 240.5 240.8 mm -
Depth - 5.7 6.0 mm (1)
Weight 480 490 500 g -
Note 1: The maximum thickness of I/O connector area is 6.0mm.
4 / 27
Version 3.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Jan. 21, 2003
Model No. : N150X2-L01
Approval
1. ABSOLUTE MAXIMUM RATINGS
1.1 ABSOLUTE RATING OF ENVIRONMENT
Item Symbol Min. Max. Unit Note
Operating Ambient Temperature TOP 0 +50 qC -
Operating Temperature for Panel - 0 +60 qC (2)
Storage Temperature TSTG -20 +60 qC -
Operating Ambient Humidity HOP 20 90 %RH (1)
Storage Humidity HSTG 10 90 %RH (1)
Air Pressure - 70.0 - kPa Operation
Air Pressure - 12.0 - kPa Non-Operation
Altitude - - 4572 m Operation
Altitude - - 15240 m Non-Operation
Note. (1) Wet bulb temperature should be 39qC Max, and no condensation of water.
(2) The surface temperature caused by self-heat radiation of cell itself is specified on this item.
1.2 ELECTRICAL ABSOLUTE RATINGS
(1) TFT LCD Module
Values
Parameter Symbol Unit Remarks
Min. Max.
Power supply voltage VCC -0.3 +4.0 V
Logic input voltage VIN -0.3 VCC+0.3 V Ta=0~50◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
