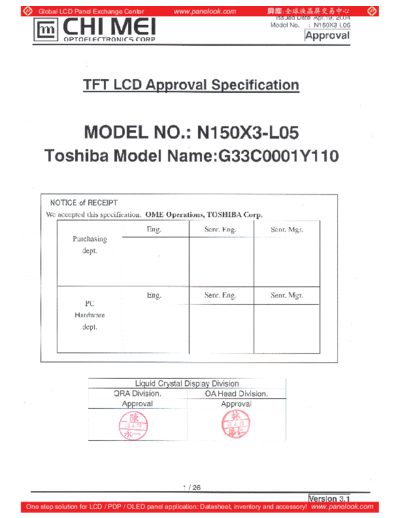

Image preview - the first page of the document
![Panel_CMO_N150X3-L05_5_[DS]](/pics/5c8ecf31e224c.gif)
>> Download Panel_CMO_N150X3-L05_5_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Apr.19, 2004
Model No. : N150X3-L05
Approval
CONTENTS
REVISION HISTORY
GENERAL DESCRIPTION
1. ABSOLUTE MAXIMUM RATINGS
1.1 ABSOLUTE RATING OF ENVIRONMENT
1.2 ELECTRICAL ABSOLUTE RATINGS
1.3 MECHANICAL RATINGS
1.4 THE OTHERS
2. ELECTRICAL SPECIFICATIONS
2.1 TFT LCD MODULE
2.2 BACKLIGHT UNIT
2.3 MATERIAL LIST CONCERNING EMI REGULATIONS
3. INTERFACE SPECIFICATIONS
3.1 THE PIN ASSIGNMENT OF LVDS INTERFACE CONNECTOR
3.2 INPUT SIGNAL TIMING SPECIFICATIONS
3.3 COLOR DATA INPUT ASSIGNMENT
3.4 POWER UP/DOWN SEQUENCE
4. OPTICAL SPECIFICATIONS
4.1 TEST CONDITIONS
4.2 OPTICAL SPECIFICATIONS
5. MECHNICAL DRAWING
6. PRECAUTION
6.1 ASSEMBLY AND HANDLING PRECAUTION
6.2 SAFTY PRECAUTION
7. PACKING
7.1 PACKING SPECIFICATIONS
7.2 PACKING METHOD
8. DEFINITION OF SHIPPING LABEL ON MODULE
Attached 1, Drawing
Attached 2, TFT LCD Inspection Specification
2 / 26
Version 3.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Apr.19, 2004
Model No. : N150X3-L05
Approval
REVISION HISTORY
Page
Version Date Section Description
(New)
3.0 Feb,17,'04 All All Final specification was first issued for TSB.
3.1 Mar.30,'04 6 1.3 294mNm (3.0 kgfcm)
9 2.2 Added Leak current
11 Note (8) LLeak = LHot -LGnd
LHot :Current of Hot
LGnd :Current of GND
9 2.2 Startup Voltage 1500 Vrms
13 3.1 Pin 4~7 Non Connection
16 3.4 Power off t7
Apr.12.2004 9 2.1 Add min & max value for Power supply Current
2.2 Lamp current 6.0mA
9 & 11 2.3 Delete leakage current & Note 8
10 note(8) Modified EMI regulations
13 3.1 Recover interface connector pin 4~7 assignment
16 3.4.1 Change t5 & t6
Apr.14.2004 13 3.1 Delete "equivalent"
16 3.4.1 Delete 0 < t7 50 msec (given by system)
Delete 0 < t7 400 msec (measured on TFT-LCD module)
Change 10times to 15 times under 245.0 mNm (2.5 kgfcm)
Apr.19,2004 5 1.1 Add Operation temperature for panel & note 2
6 1.3 Add Operation item in Mechanical Vibration & Mechanical Shock.
18 4.2 Gamma L32 - 22.5%
26 8 Definition of shipping label on module
3 / 26
Version 3.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Apr.19, 2004
Model No. : N150X3-L05
Approval
GENERAL DESCRIPTION
OVERVIEW
This product is a 15" TFT Liquid Crystal Display Module with a Backlight unit and 30 pins LVDS (Low Voltage
Differential Signal) interface. This module supports 1024 x 768 XGA mode and can display 262,144 colors. The
inverter module for Backlight is not built in.
BLOCK DIAGRAM
Rxin0(+/-)
LVDS INPUT /
SCAN DRIVER IC
Rxin1(+/-) TIMING CONTROLLER
TFT LCD PANEL
(JAE-FI-XB30S-HF10)
Rxin2(+/-)
INPUT CONNECTOR
(1024xR.G.B.x768)
CLK(+/-)
Vcc
GND DC/DC CONVERTER &
REFERENCE VOLTAGE
DataEDID GENERATOR DATA DRIVER IC
CLKEDID
EDID
VEDID
EEPROM
VL LAMP CONNECTOR
(JST-BHTR-02VS-1) BACKLIGHT UNIT
APPLICATION
-Note Book PC
GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 304.1 (H) x 228.1 (V) (15.0" diagonal) mm
(1)
Bezel Opening Area 307.8 (H) x 231.6 (V) mm
Driver Element a-si TFT active matrix - -
Pixel Number 1024 x R.G.B. x 768 pixel -
Pixel Pitch 0.297 (H) x 0.297 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 262,144 color -
Transmissive Mode Normally white - -
Surface Treatment Hard coating (3H), Anti-glare (Haze 25 %) - -
MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 316.8 317.3 317.8 mm
Module Size Vertical(V) 241.5 242 242.5 mm (1)
Depth(D) 5.4 5.7 6.0 mm
Weight 490 505 520 g -
Note 1: The maximum thickness of I/O connector area is 6.0mm.
4 / 26
Version 3.1
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Apr.19, 2004
Model No. : N150X3-L05
Approval
1. ABSOLUTE MAXIMUM RATINGS
1.1 ABSOLUTE RATING OF ENVIRONMENT
Item Symbol Min. Max. Unit Note
Operating Ambient Temperature TOP 0 +50 qC -
Operating Temperature for Panel - 0 +60 qC (2)
Storage Temperature TSTG -20 +60 qC -
Operating Ambient Humidity HOP 20 90 %RH (1)
Storage Humidity HSTG 10 90 %RH (1)
Air Pressure - 70.0 - kPa Operation
Air Pressure - 12.0 - kPa Non-Operation
Altitude - - 4572 m Operation
Altitude - - 15240 m Non-Operation
Note. (1) Wet bulb temperature should be 39qC Max, and no condensation of water.
(2) The surface temperature caused by self-heat radiation of cell itself is specific on this item.
1.2 ELECTRICAL ABSOLUTE RATINGS
(1) TFT LCD Module
Values
Parameter Symbol Unit Remarks
Min. Max.
Power supply voltage VCC -0.3 +4.0 V
Logic input voltage VIN -0.3 VCC+0.3 V Ta=0~50◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
