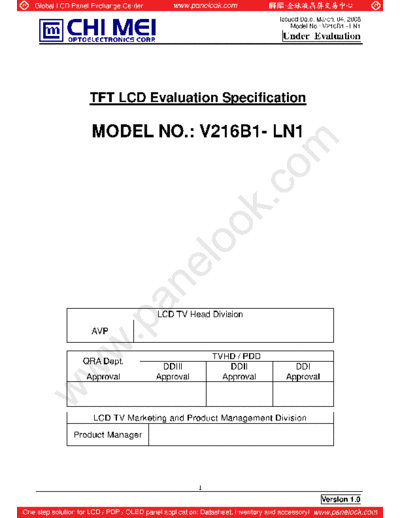

Image preview - the first page of the document
![Panel_CMO_V216B1-LN1_0_[DS]](/pics/5c8ed4cfa980f.gif)
>> Download Panel_CMO_V216B1-LN1_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Issued Date: March. 04, 2008
Model No.: V216B1 - LN1
Under Evaluation
TFT LCD Evaluation Specification
MODEL NO.: V216B1- LN1
LCD TV Head Division
AVP
TVHD / PDD
QRA Dept.
DDIII DDII DDI
Approval Approval Approval Approval
LCD TV Marketing and Product Management Division
Product Manager
1
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: March. 04, 2008
Model No.: V216B1 - LN1
Under Evaluation
1. GENERAL SPECIFICATIONS
1.1 OVERVIEW
The V216B1-LN1 model is a 21.6 inch wide TFT-LCD module with a 4-CCFL Backlight Unit and a 55-pin
1-path RSDS interface. This module supports 1366 x 768 (16:9 wide screen) mode and displays up to 16.7
millions colors. The inverter module for the Backlight Unit is not built in.
1.2 GENERAL
Item Specification Unit Note
Active Area 477.417 (H) x 268.416 (V) (21.6" diagonal) mm
Bezel Opening Area 481.5 (H) x 272.5 (V) mm
Driver Element a-si TFT active matrix -
Pixel Number 1366 x R.G.B. x 768 pixel
Pixel Pitch (Sub Pixel) 0.1165 (H) x 0.3495 (V) mm
Pixel Arrangement RGB vertical stripe -
Display Colors 16.7 millions color
Display Operation Mode Transmissive mode / Normally White -
Surface Treatment Hard coating (3H), AG (Haze 25%) -
1.3 MECHANICAL
Item Min. Typ. Max. Unit Note
Horizontal(H) 500.3 501 501.7 mm
Vertical(V) 296.4 297 297.6 mm
Module Size
Depth(D) 16.8 17.3 17.8 mm To PCB cover
Depth(D) Na Na Na mm To inverter cover
Weight Na TBD Na g
2. ABSOLUTE MAXIMUM RATINGS
2.1 TFT LCD MODULE
Value
Item Symbol Unit Note
Min. Max.
VAA -0.3 14.0 V
Power Supply Voltage VGH -0.3 30.0 V
VGL -10.0 -0.3 V
Input Signal Voltage VIN -0.3 3.6 V
2.2 BACKLIGHT UNIT
Test
Item Symbol Min. Type Max. Unit Note
Condition
Lamp Voltage VW Ta = 25 3000 VRMS
2
Version 1.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: March. 04, 2008
Model No.: V216B1 - LN1
Under Evaluation
3. ELECTRICAL CHARACTERISTICS
