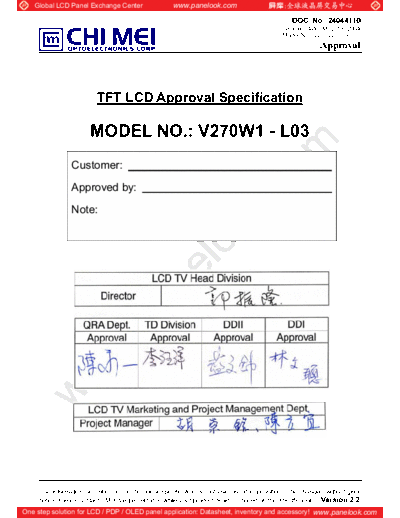

Image preview - the first page of the document
![Panel_CMO_V270W1-L03_1_[DS]](/pics/5c8ed5ca11e41.gif)
>> Download Panel_CMO_V270W1-L03_1_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
DOC No. 24044110
Issued Date: May. 19, 2004
Model No.: V270W1 - L03
Approval
TFT LCD Approval Specification
MODEL NO.: V270W1 - L03
Customer:
Approved by:
Note:
- 1
The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 2.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
DOC No. 24044110
Issued Date: May. 19, 2004
Model No.: V270W1 - L03
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 6
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
3.2.1 CCFL CHARACTERISTICS
3.2.2 INVERTER CHARACTERISTICS
3.2.3 INVERTER INTERTFACE CHARACTERISTICS
4. BLOCK DIAGRAM ------------------------------------------------------- 12
4.1 TFT LCD MODULE
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 13
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 INVERTER UNIT
5.4 BLOCK DIAGRAM OF INTERFACE
5.5 LVDS INTERFACE
5.6 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 19
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 21
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PACKAGING ------------------------------------------------------- 25
8.1 PACKING SPECIFICATIONS
8.1 PACKING METHOD
9. DEFINITION OF LABELS ------------------------------------------------------- 27
9.1 CMO MODULE LABEL
10. PRECAUTIONS ------------------------------------------------------- 28
10.1 ASSEMBLY AND HANDLING PRECAUTIONS
10.2 SAFETY PRECAUTIONS
11. MECHANICAL CHARACTERISTICS ------------------------------------------------------- 29
- 2
The information described in this technical specification is tentative and it is possible to be changed without prior
notice. Please contact CMO 's representative while your product design is based on this specification. Version 2.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
DOC No. 24044110
Issued Date: May. 19, 2004
Model No.: V270W1 - L03
Approval
REVISION HISTORY
Page
Version Date Section Description
(New)
Ver 1.0 August 1,03 All All Preliminary Specification is first issued.
Ver 2.0 Sep. 18,03 17 7.2 Contrast ratio:Typ. (600)◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
