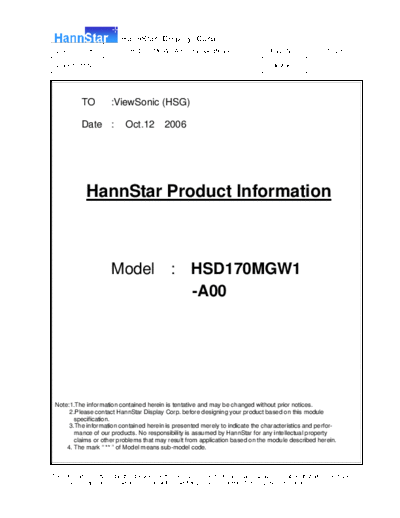

Image preview - the first page of the document

>> Download Panel_HannStar_HSD170MGW1-A00_0_[DS] documenatation <<

Text preview - extract from the document

H a n n Sta r Di sp l a y C o rp .
Document Title HSD170MGW1-A Formal Specification Page No. 1 / 29

Document No. Revision 2.0

TO :ViewSonic (HSG)

Date : Oct.12 2006

HannStar Product Information

Model : HSD170MGW1
-A00

Note:1.The information contained herein is tentative and may be changed without prior notices.
2.Please contact HannStar Display Corp. before designing your product based on this module
specification.
3.The information contained herein is presented merely to indicate the characteristics and perfor-
mance of our products. No responsibility is assumed by HannStar for any intellectual property
claims or other problems that may result from application based on the module described herein.
4. The mark " ** " of Model means sub-model code.

The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be disclosed,
distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
H a n n Sta r Di sp l a y C o rp .
Document Title HSD170MGW1-A Formal Specification Page No. 2 / 29

Document No. Revision 2.0

Record of Revisions
Rev. Date Sub-Model Description of change
1.0 Sep.8, 2006 A00 HSD170MGW1-A Tentative specification was first issued.
2.0 Oct.12, 2006 A00 HSD170MGW1-A formal specification was first issued.

Document No. Revision 2.0

Contents

1.0 General description ........................................ p.4

2.0 Absolute maximum ratings ............................... p.6

3.0 Optical characteristics ..................................... p.8

4.0 Block diagram ................................... ........... p.12

5.0 Interface pin connection .................................. p.15

6.0 Electrical characteristics .................................. p.16

7.0 Outline dimension .......................................... p.24

8.0 Lot mark ....................................................... p.26

9.0 Package specification ..................................... p.27

10.0 General precaution ......................................... p.28

Document No. Revision 2.0

1.0 GENERAL DESCRIPTION
1.1 Introduction
HannStar Display model HSD170MGW1-A is a color active matrix thin film transistor
(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching
device. This model is composed of a TFT LCD panel, a driving circuit and a back light
system. This TFT LCD has a 17.0 inch diagonally measured active display area with
XGA resolution (900 vertical by 1440 horizontal pixel array) and can display up to
262,144 colors.

1.2 Features
17.0 WXGA+ for Monitor application
High Resolution: 1440*900
2-ch LVDS interface system
Input timing: DE mode
Wide Viewing Angle
RoHS compliance

1.3 Applications
Notebook PC
Desktop Monitor
Display terminals for AV applications
Display terminals for industrial applications

1.4 General information
Item Specification Unit
Outline Dimension 389.2 x 254.5 x 11.5 (Typ) mm
Display area 367.2 (H) x 229.5 (V) mm
Number of Pixel 1440(H) x 900(V) pixels
Pixel pitch 0.255(H) x 0.255(V) mm
Pixel arrangement RGB Vertical stripe
Display color 6 Bits / 262,144 colors
Display mode Normally white
Surface treatment Antiglare (3H)
Weight 1370 g
Back-light 2-CCFLs, Top & bottom edge side
Input signal 2-ch LVDS
Power Logic System 2.4 W
Consumption B/L System 9.8 W

Document No. Revision 2.0

1.5 Mechanical Information
Item Min. Typ. Max. Unit
Horizontal (H) 388.7 389.2 389.7 mm
Module
Vertical (V) 254.0 254.5 255.0 mm
Size
Depth (D) 11.2 11.5 11.8 mm
Weight (Without inverter) - 1370 1500 g
Torque of customer screw hole - - 3.0 Kgf
