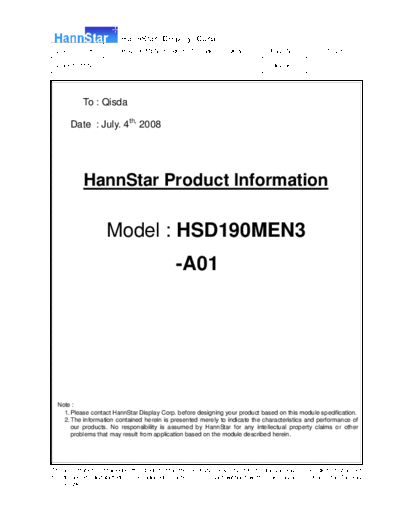

Image preview - the first page of the document
![Panel_HannStar_HSD190MEN3-A01_1_[DS]](/pics/5c8edbe23b650.gif)
>> Download Panel_HannStar_HSD190MEN3-A01_1_[DS] documenatation <<
Text preview - extract from the document
H a n n Sta r Di sp l a y C o rp .
Document Title HSD190MEN3 Product Information for Qisda Page No. 1 / 29
Document No. Revision 1.0
To : Qisda
Date : July. 4th, 2008
HannStar Product Information
Model : HSD190MEN3
-A01
Note :
1. Please contact HannStar Display Corp. before designing your product based on this module specification.
2. The information contained herein is presented merely to indicate the characteristics and performance of
our products. No responsibility is assumed by HannStar for any intellectual property claims or other
problems that may result from application based on the module described herein.
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
H a n n Sta r Di sp l a y C o rp .
Document Title HSD190MEN3 Product Information for Qisda Page No. 2 / 29
Document No. Revision 1.0
Record of Revisions
Rev. Date Sub-Model Description of change
1.0 July. 4th, 2008 A01 HSD190MEN3-A01 Product Information was first
issued.
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
H a n n Sta r Di sp l a y C o rp .
Document Title HSD190MEN3 Product Information for Qisda Page No. 3 / 29
Document No. Revision 1.0
Contents
1.0 General Descriptions .......................................... p.4
2.0 Absolute Maximum Ratings .................................. p.6
3.0 Optical Characteristics ........................................ p.8
4.0 Block Diagram .................................................. p.12
5.0 I/O Connection Pin Assignment ............................ p.15
6.0 Electrical Characteristics ................................... p.16
7.0 Outline Dimension ............................................. p.22
8.0 Lot Mark .......................................................... p.24
9.0 Package Specification .......................................... p.25
10.0 General Precaution ............................................... p.26
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
H a n n Sta r Di sp l a y C o rp .
Document Title HSD190MEN3 Product Information for Qisda Page No. 4 / 29
Document No. Revision 1.0
1.0 GENERAL DESCRIPTIONS
1.1 Introduction
HannStar Display model HSD190MEN3-A01 is a color active matrix thin film
transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a
switching device. This model is composed of a TFT LCD panel, the voltage
reference, common voltage, DC-DC converter, column, and row driver circuit. This
TFT LCD has a 19-inch diagonally measured active display area with SXGA
resolution (1024 vertical by 1280 horizontal pixel array) .
1.2 Features
19"SXGA TFT LCD Panel
4 CCFLs Backlight System
Supported SXGA (V:1024 lines, H:1280 pixels) Resolution
Supported to 75Hz Refresh Rate
LCD Timing Controller
RoHS Compliance
VESA Compatible
1.3 Applications
Desktop Monitors
Display terminals for AV applications
Monitors for industrial applications
1.4 General information
Item Specification Unit
Outline dimension 396 * 324 * 16.5(Typ) mm
Display area 376.32 (H) x301.056 (V) (19.0" diagonal) mm
Number of Pixel 1280(H) x 1024(V) Pixels
Pixel pitch 0.294(H) x 0.294(V) mm
Pixel arrangement RGB Vertical Stripe
Display color 16.7M (6-bits+Hi FRC)
Color temperature 6500K
Display mode Normally white
Surface treatment Antiglare, Hard-Coating (3H)
Weight 2250 g
Back-light 4-CCFLs, Top & bottom edge side
Input signal 2-ch LVDS
System 3.5(Typ.)
Power consumption W
B/L 19.8(Typ.)
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
H a n n Sta r Di sp l a y C o rp .
Document Title HSD190MEN3 Product Information for Qisda Page No. 5 / 29
Document No. Revision 1.0
1.5 Mechanical Information
Item Min. Typ. Max. Unit
Horizontal(H) 395.5 396.0 396.5 mm
Module Size Vertical(V) 323.5 324.0 324.5 mm
Depth(D) 16.5 mm
Weight (without inverter) -- 2250 -- g
Torque of customer screw hole -- -- 3.0 Kgf*Cm
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
H a n n Sta r Di sp l a y C o rp .
Document Title HSD190MEN3 Product Information for Qisda Page No. 6 / 29
Document No. Revision 1.0
2.0 ABSOLUTE MAXIMUM RATINGS
2.1 Absolute Rating of Environment
Item Symbol Min. Max. Unit Note
o
Storage temperature TSTG -20 60 C
o
Operating temperature TOPR 0 50 C (1)
Vibration (non-operating) VNOP -- 1.5 G (2)
Shock (non-operating) SNOP -- 70 G (3)
Storage humidity HSTG 10 90 %RH (3)
Operating humidity HOP 10 80 %RH (4)
Low pressure (operating) PLOP 697 -- HPa (5)
Low pressure (non-operating) PLNOP 116 -- HPa (6)
Note (1)Storage /Operating temperature
Humidity (%)
100
90
80
Operating Range
60
40
Storage Range
20
10
0
-40 -20 0 20 40 50 60 65
Temperature (oC)
(2) 5-500-5Hz sine wave, X, Y, Z each directions, 30 min/cycle.
