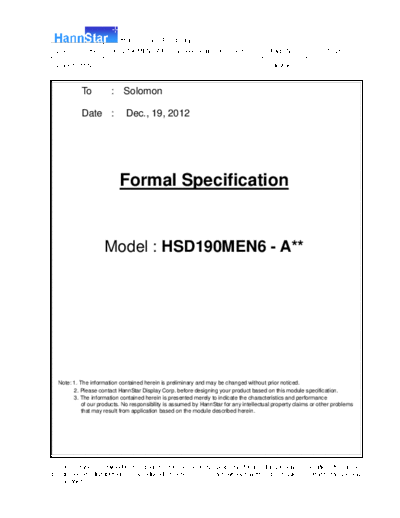

Image preview - the first page of the document
![Panel_HannStar_HSD190MEN6-A_0_[DS]](/pics/5c8edbf3807c6.gif)
>> Download Panel_HannStar_HSD190MEN6-A_0_[DS] documenatation <<
Text preview - extract from the document
H a n n Star D is p la y C or p.
Document Title HSD190MEN6-A Formal Specification for Solomon Page No. 1 / 25
Document No. Revision 2.0
To : Solomon
Date : Dec., 19, 2012
Formal Specification
Model : HSD190MEN6 - A**
Note: 1. The information contained herein is preliminary and may be changed without prior noticed.
2. Please contact HannStar Display Corp. before designing your product based on this module specification.
3. The information contained herein is presented merely to indicate the characteristics and performance
of our products. No responsibility is assumed by HannStar for any intellectual property claims or other problems
that may result from application based on the module described herein.
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
H a n n Star D is p la y C or p.
Document Title HSD190MEN6-A Formal Specification for Solomon Page No. 2 / 25
Document No. Revision 2.0
Record of Revisions
Rev. Date Sub-Model Description of change
1.0 Jun. 26,2012 A** HSD 190MEN6-A** formal specification was 1st issued
1.1 Aug 17, 2012 A** P29 Add supplier code for HP.
1.2 Sept 6, 2012 A** P15 Update current of power supply.
P20 Update outline drawing.
P30 Add glass surface temperature information (for Dell only).
P31 Update interface timing (for Dell only).
1.3 Sept18, 2012 A** P12 Update 4.2 LED light bar connector description.
P15 Update 6.1 min. value of frequency.
2.0 Nov 8, 2012 A** P6 Add note information.
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
H a n n Star D is p la y C or p.
Document Title HSD190MEN6-A Formal Specification for Solomon Page No. 3 / 25
Document No. Revision 2.0
Contents
1.0 General Descriptions ........................................ p.4
2.0 Absolute Maximum Ratings ................................ p.5
3.0 Optical Characteristics ...................................... p.7
4.0 Block Diagram ................................................ p.11
5.0 I/O Connection Pin Assignment .......................... p.14
6.0 Electrical Characteristics ................................. p.15
7.0 Outline Dimension ........................................... p.21
8.0 Lot Mark ........................................................ p.25
9.0 Package Specification ....................................... p.26
10.0 General Precaution .......................................... p.27
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
H a n n Star D is p la y C or p.
Document Title HSD190MEN6-A Formal Specification for Solomon Page No. 4 / 25
Document No. Revision 2.0
1.0 GENERAL DESCRIPTIONS
1.1 Introduction
HannStar Display model HSD190MEN6-A* is a color active matrix thin film transistor (TFT) liquid
crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is
composed of a TFT LCD panel, the voltage reference, common voltage, DC-DC converter, column,
and row driver circuit. This TFT LCD has a 19-inch diagonally measured active display area with
SXGA resolution (1024 vertical by 1280 horizontal pixel array) .
1.2 Features
19"SXGA TFT LCD Panel
LED Backlight System
Supported SXGA (V:1024 lines, H:1280 pixels) Resolution
Supported to 75Hz Refresh Rate
LCD Timing Controller
RoHS Compliance
VESA Compatible
Halogen Free
1.3 Applications
Desktop Monitors
Display terminals for AV applications
Monitors for industrial applications
1.4 General information
Item Specification Unit
Outline dimension 396 * 324 * 9.9(Typ) mm
Display area 376.32 (H) x301.056 (V) (19.0" diagonal) mm
Number of Pixel 1280(H) x 1024(V) Pixels
Pixel pitch 0.294(H) x 0.294(V) mm
Pixel arrangement RGB Vertical Stripe
Display color 16.7M (6-bits+Hi FRC)
Color temperature 6500K
Display mode Normally white
Surface treatment Antiglare, Hard-Coating (3H)
Weight 1600 g
Back-light White LED
Input signal 2-ch LVDS
System 3.6(Typ.), 4.2(Max.) L0 pattern
Power consumption W
B/L 11.83 (Max.)
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
H a n n Star D is p la y C or p.
Document Title HSD190MEN6-A Formal Specification for Solomon Page No. 5 / 25
Document No. Revision 2.0
Remark(1): There are two functions, brightness and contrast tuning, to let luminance to 125cd/m2 in OSD. OSD shouldn't restrict the panel's G-T curve for
brightness to be 125cd/m2. The higher contrast, the higher angular uniformity. That is to say, if OSD want to tune the panel's luminance to 125 cd/m2, the
suitable way is to only tune the brightness function. And if tuning the brightness function to 125 cd/m2, it would be better only to tuning the inverter, not the
gray level.
1.5 Mechanical Information
Item Min. Typ. Max. Unit
Horizontal(H) 395.5 396.0 396.5 mm
Module Size Vertical(V) 323.5 324.0 324.5 mm
Depth(D) 9.9 mm
Weight (without inverter) 1400 1600 1800 g
Torque of customer screw hole -- -- 3.0 Kgf*Cm
2.0 ABSOLUTE MAXIMUM RATINGS
2.1 Absolute Rating of Environment
Item Symbol Min. Max. Unit Note
o
Storage temperature TSTG -20 60 C
o
Operating temperature TOPR 0 50 C (1)
Vibration (non-operating) VNOP -- 1.5 G (2)
Shock (non-operating) SNOP -- 70 G (3)
Storage humidity HSTG 10 90 %RH (3)
Operating humidity HOP 10 90 %RH (4)
Low pressure (operating) PLOP 697 -- HPa (5)
Low pressure (non-operating) PLNOP 116 -- HPa (6)
Note 1 (1)Storage /Operating temperature
Humidity (%)
100
90
80
60
40
Storage Range
20
10
0
-40 -20 0 20 40 50 60 65
Temperature (oC)
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
H a n n Star D is p la y C or p.
Document Title HSD190MEN6-A Formal Specification for Solomon Page No. 6 / 25
Document No. Revision 2.0
(2) 5-500-5Hz sine wave, X, Y, Z each directions, 30 min/cycle.
