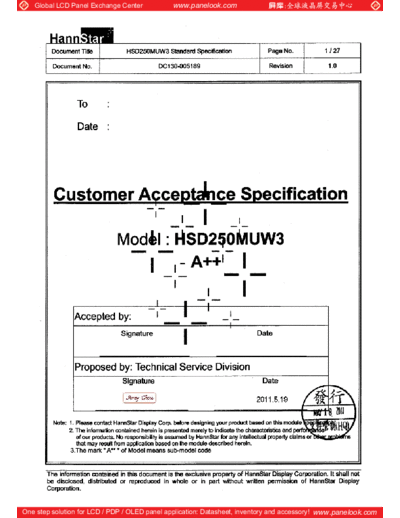

Image preview - the first page of the document
![Panel_HannStar_HSD250MUW3-A00_1_[DS]](/pics/5c8edc11089d1.gif)
>> Download Panel_HannStar_HSD250MUW3-A00_1_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Ha n n Star D is p la y Cor p.
Document Title HSD250MUW3 Standard Specification Page No. 1 / 27
Document No. DC130-005189 Revision 1.0
To :
Date :
Customer Acceptance Specification
Model : HSD250MUW3
- A++
Accepted by:
Signature Date
Proposed by: Technical Service Division
Signature Date
Note: 1. Please contact HannStar Display Corp. before designing your product based on this module specification.
2. The information contained herein is presented merely to indicate the characteristics and performance
of our products. No responsibility is assumed by HannStar for any intellectual property claims or other problems
that may result from application based on the module described herein.
3.The mark " A** " of Model means sub-model code
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Ha n n Star D is p la y Cor p.
Document Title HSD250MUW3 Standard Specification Page No. 2 / 27
Document No. DC130-005189 Revision 1.0
Record of Revisions
Rev. Date Sub-Model Description of change
1.0 May.17.2011 A00 HSD 250MUW3-A Formal Specification was 1st issued
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Ha n n Star D is p la y Cor p.
Document Title HSD250MUW3 Standard Specification Page No. 3 / 27
Document No. DC130-005189 Revision 1.0
Contents
1.0 General Descriptions ........................................ p.4
2.0 Absolute Maximum Ratings ................................ p.5
3.0 Optical Characteristics ...................................... p.6
4.0 Block Diagram ................................................ p.11
5.0 I/O Connection Pin Assignment .......................... p.14
6.0 Electrical Characteristics ................................. p.16
7.0 Outline Dimension ........................................... p.21
8.0 Lot Mark ........................................................ p.23
9.0 Package Specification ....................................... p.24
10.0 General Precaution .......................................... p.25
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Ha n n Star D is p la y Cor p.
Document Title HSD250MUW3 Standard Specification Page No. 4 / 27
Document No. DC130-005189 Revision 1.0
1.0 GENERAL DESCRIPTIONS
1.1 Introduction
HannStar Display model HSD250MUW3-A is a color active matrix thin film transistor (TFT) liquid
crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is
composed of a FHD resolution (1920 vertical by 1080 horizontal pixel array) TFT LCD panel, the
voltage reference, common voltage, DC-DC converter, column, and row driver circuit..
1.2 Features
25"(24.55") FHD TFT LCD Panel
LED Backlight System
Supported Full HD (V:1080 lines, H:1920 pixels) Resolution
Supported to 75Hz Refresh Rate
LCD Timing Controller
RoHS Compliance
VESA Compatible
Halogen Free
1.3 Applications
Desktop Monitors
Display terminals for AV applications
Monitors for industrial applications
1.4 General information
Item Specification Unit
Outline dimension 568 x 330 x 9.8(Typ) mm
Display area 543.46 (H) x305.69 (V) (25.0" diagonal) mm
Screen Diagonal 24.55 inch
Number of Pixel 1920(H) x 1080(V) Pixels
Pixel pitch 0.283(H) x 0.283(V) mm
Pixel arrangement RGB Vertical Stripe
Color Gamut 68% NTSC
Display color 16.7M (6-bits+Hi FRC)
Display mode Normally white
Surface treatment Antiglare, Hard-Coating (3H)
Weight 1750 g
Back-light White LED
Input signal 2-ch LVDS
System 4.0(Typ.)
Power consumption W
B/L 16.13(Typ.)
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Ha n n Star D is p la y Cor p.
Document Title HSD250MUW3 Standard Specification Page No. 5 / 27
Document No. DC130-005189 Revision 1.0
Remark(1): There are two functions, brightness and contrast tuning, to let luminance to 125cd/m2 in OSD. OSD shouldn't restrict the panel's G-T curve for
brightness to be 125cd/m2. The higher contrast, the higher angular uniformity. That is to say, if OSD want to tune the panel's luminance to 125 cd/m2, the
suitable way is to only tune the brightness function. And if tuning the brightness function to 125 cd/m2, it would be better only to tuning the inverter, not the
gray level.
1.5 Mechanical Information
Item Min. Typ. Max. Unit
Horizontal(H) 567.5 568.0 568.5 mm
Module Size Vertical(V) 329.5 330.0 330.5 mm
Depth(D) -- 9.8 -- mm
Weight (without inverter) -- 1750 -- g
Torque of customer screw hole -- -- 3.0 Kgf*Cm
2.0 ABSOLUTE MAXIMUM RATINGS
2.1 Absolute Rating of Environment
Item Symbol Min. Max. Unit Note
o
Storage temperature TSTG -20 60 C
o
Operating temperature TOPR 0 50 C (1)
Vibration (non-operating) VNOP -- 1.5 G (2)
Shock (non-operating) SNOP -- 70 G (3)
Storage humidity HSTG 10 90 %RH (3)
Operating humidity HOP 10 90 %RH (4)
Low pressure (operating) PLOP 697 -- HPa (5)
Low pressure (non-operating) PLNOP 116 -- HPa (6)
Note (1)Storage /Operating temperature
Humidity (%)
100
90
80
60
40
Storage Range
20
10
0
-40 -20 0 20 40 50 60 65
Temperature (oC)
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not
be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display
Corporation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Ha n n Star D is p la y Cor p.
Document Title HSD250MUW3 Standard Specification Page No. 6 / 27
Document No. DC130-005189 Revision 1.0
(2) 5-500-5Hz sine wave, X, Y, Z each directions, 30 min/cycle.
