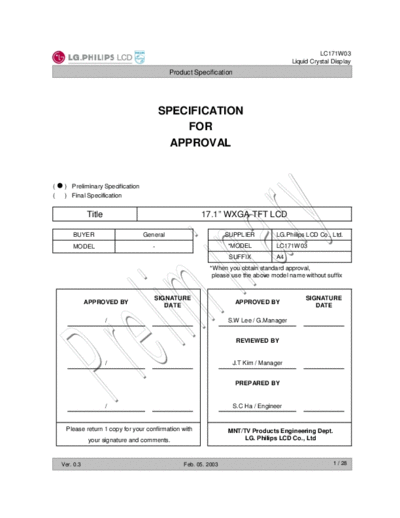

Image preview - the first page of the document
![Panel_LG-Philips_LCD_LC171W03-A4_0_[DS]](/pics/5e96c0d2380cf.gif)
>> Download Panel_LG-Philips_LCD_LC171W03-A4_0_[DS] documenatation <<
Text preview - extract from the document
LC171W03
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ! ) Preliminary Specification
( ) Final Specification
Title 17.1" WXGA TFT LCD
BUYER General SUPPLIER LG.Philips LCD Co., Ltd.
MODEL - *MODEL LC171W03
SUFFIX A4
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ S.W Lee / G.Manager
REVIEWED BY
/ J.T Kim / Manager
PREPARED BY
/ S.C Ha / Engineer
Please return 1 copy for your confirmation with MNT/TV Products Engineering Dept.
your signature and comments. LG. Philips LCD Co., Ltd
Ver. 0.3 Feb. 05. 2003 1 / 28
LC171W03
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 9
3-3 SIGNAL TIMING SPECIFICATIONS 13
3-4 SIGNAL TIMING WAVEFORMS 14
3-5 COLOR INPUT DATA REFERNECE 15
3-6 POWER SEQUENCE 16
4 OPTICAL SFECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 21
6 RELIABILITY 24
7 INTERNATIONAL STANDARDS 25
7-1 SAFETY 25
7-2 EMC 25
8 PACKING 26
8-1 DESIGNATION OF LOT MARK 26
8-2 PACKING FORM 26
9 PRECAUTIONS 27
Ver. 0.3 Feb. 05. 2003 2 / 28
LC171W03
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision No Revision Date Page DESCRIPTION
0.0 Jan.10.2003 - Preliminary Specification
0.1 Jan.21.2003 12,17 Mating connector , Color Coordinates
0.2 Jan.26.2003 18 Gray scale
4,6,9.10.11.
0.3 Feb.05.2003 CAS standardization
17.27
Ver. 0.3 Feb. 05. 2003 3 / 28
LC171W03
Liquid Crystal Display
Product Specification
1. General Description
LC171W03 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transm iss ive type display operating in the normally black mode. It has a 17.1 inch
diagonally measured active display area with WXGA resolution (768 vertical by 1280 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, a palette of more than 16,7M(true) colors.
It has been designed to apply the 8 bit LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, wide viewing angle, high color
saturation, and high color are important.
Source Driver Circuit
LVDS Timing Control S1280
S1
5pair Block
CN1
G1
Gate Driver circuit
(20pin)
VLCD
Power Circuit TFT-LCD Panel
+12.0V Block (1280 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
