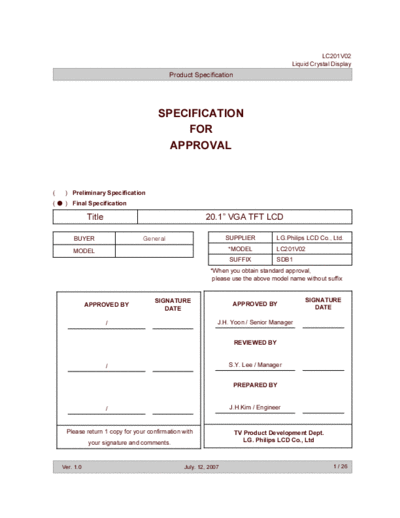

Image preview - the first page of the document
![Panel_LG-Philips_LCD_LC201V02-SDB1_0_[DS]](/pics/5e96c0e4c8952.gif)
>> Download Panel_LG-Philips_LCD_LC201V02-SDB1_0_[DS] documenatation <<
Text preview - extract from the document
LC201V02
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 20.1" VGA TFT LCD
BUYER n SUPPLIER LG.Philips LCD Co., Ltd.
MODEL *MODEL LC201V02
SUFFIX SDB1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J.H. Yoon / Senior Manager
REVIEWED BY
/ S.Y. Lee / Manager
PREPARED BY
/ J.H.Kim / Engineer
Please return 1 copy for your confirmation with TV Product Development Dept.
your signature and comments. LG. Philips LCD Co., Ltd
Ver. 1.0 July. 12, 2007 1 / 26
LC201V02
Liquid Crystal Display
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 9
3-3 SIGNAL TIMING SPECIFICATIONS 11
3-4 SIGNAL TIMING WAVEFORMS 12
3-5 COLOR INPUT DATA REFERENCE 13
3-6 POWER SEQUENCE 14
4 OPTICAL SPECIFICATIONS 15
5 MECHANICAL CHARACTERISTICS 19
6 RELIABILITY 22
7 INTERNATIONAL STANDARDS 23
7-1 SAFETY 23
7-2 EMC 23
8 PACKING 24
8-1 DESIGNATION OF LOT MARK 24
8-2 PACKING FORM 24
9 PRECAUTIONS 25
9-1 MOUNTING PRECAUTIONS 25
9-2 OPERATING PRECAUTIONS 25
9-3 ELECTROSTATIC DISCHARGE CONTROL 26
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 26
9-5 STORAGE 26
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 26
Ver. 1.0 July. 12, 2007 2 / 26
LC201V02
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
1.0 July.12.2007 - Final Specification
Ver. 1.0 July. 12, 2007 3 / 26
LC201V02
Liquid Crystal Display
Product Specification
1. General Description
The LC201V02 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 20.1 inch
diagonally measured active display area with VGA resolution (480 vertical by 640 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus presenting a palette of more than 16.7M(true) colors.
It has been designed to apply the 8-bit parallel CMOS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
'
' '
General Features
Active Screen Size 20.1 inches(510.54mm) diagonal
Outline Dimension 432 mm(H) x 331.5 mm(V) x 25.0 mm(D) (Typ.)
Pixel Pitch 212.5 x 637.5 x RGB
Pixel Format 640 horiz. By 480 vert.. Pixels RGB stripe arrangement
Color Depth 8-bit, 16.7 M colors
Luminance, White 450 cd/m2 (Center 1-point )(Typ.)
Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Typ.), U/D 178 (Typ.))
Power Consumption Total 32.24 W(Typ.) (Logic= 2.00W, Lamp= 30.24W [IBL=7mA])
Weight 3,500g (Typ.)
Display Operating Mode Transmissive mode, normally black
Surface Treatment Hard coating(3H) & anti-glare treatment of the front polarizer
Ver. 1.0 July. 12, 2007 4 / 26
LC201V02
Liquid Crystal Display
Product Specification
2. Absolute Maximum Ratings
The following items are maximum values which, if exceeded, may cause faulty operation or damage to the
LCD module.
Table 1. ABSOLUTE MAXIMUM RATINGS
Value
Parameter Symbol Unit Remark
Min Max
Power Input Voltage VLCD -0.3 +14.0 VDC GY\G◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
