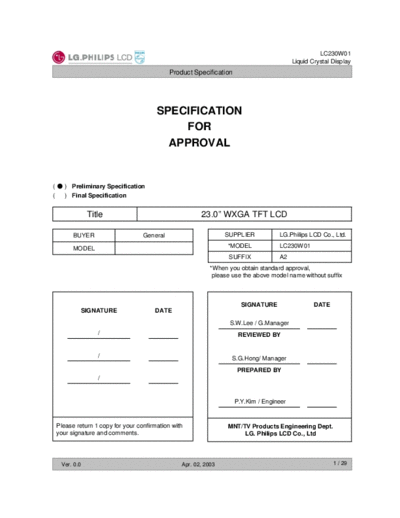

Image preview - the first page of the document
![Panel_LG-Philips_LCD_LC230W01-A2_0_[DS]](/pics/5e96c0ea814b1.gif)
>> Download Panel_LG-Philips_LCD_LC230W01-A2_0_[DS] documenatation <<
Text preview - extract from the document
LC230W01
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ! ) Preliminary Specification
( ) Final Specification
Title 23.0" WXGA TFT LCD
BUYER General SUPPLIER LG.Philips LCD Co., Ltd.
MODEL *MODEL LC230W01
SUFFIX A2
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE DATE
SIGNATURE DATE
S.W.Lee / G.Manager
/ REVIEWED BY
/ S.G.Hong/ Manager
PREPARED BY
/
P.Y.Kim / Engineer
Please return 1 copy for your confirmation with MNT/TV Products Engineering Dept.
your signature and comments. LG. Philips LCD Co., Ltd
Ver. 0.0 Apr. 02, 2003 1 / 29
LC230W01
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 12
3-4 SIGNAL TIMING WAVEFORMS 13
3-5 COLOR INPUT DATA REFERNECE 14
3-6 POWER SEQUENCE 15
3-7 LUMINANCE CONTROLS 16
4 OPTICAL SFECIFICATIONS 18
5 MECHANICAL CHARACTERISTICS 22
6 RELIABLITY 25
7 INTERNATIONAL STANDARDS 26
7-1 SAFETY
7-2 EMC
8 PACKING 27
8-1 DESIGNATION OF LOT MARK
8-2 PACKING FORM
9 PRECAUTIONS 28
Ver. 0.0 Apr. 02, 2003 2 / 29
LC230W01
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision No Revision Date Page DESCRIPTION
0.0 Apr. 02, 2002 - First Draft (Preliminary)
Ver. 0.0 Apr. 02, 2003 3 / 29
LC230W01
Liquid Crystal Display
Product Specification
1. General Description
The LC230W01 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. This TFT-LCD has a 23.0 inch
diagonally measured active display area with WXGA resolution (768 vertical by 1280 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16.7M(true) colors with 8Bit.
The LC230W01 has been designed to apply the 8Bit LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, wide viewing angle, high color saturation,
and high color are important.
RGB Source Driver Circuit
LVDS S1 S1280
G1
Gate Driver Circuit
5pair
CN1 Timing Controller
(20pin)
(LVDS Rx integrated)
+12.0V TFT - LCD Panel
