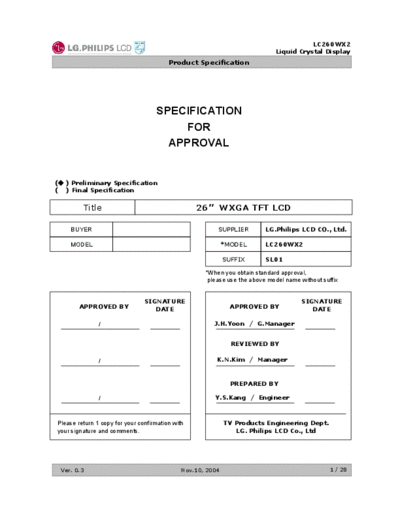

Image preview - the first page of the document
![Panel_LG-Philips_LCD_LC260WX2-SL01_0_[DS]](/pics/5e96c0f52bd7f.gif)
>> Download Panel_LG-Philips_LCD_LC260WX2-SL01_0_[DS] documenatation <<
Text preview - extract from the document
LC260WX2
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 26" WXGA TFT LCD
BUYER SUPPLIER LG.Philips LCD CO., Ltd.
MODEL *MODEL LC260WX2
SUFFIX SL01
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY DATE APPROVED BY DATE
/ J.H.Yoon / G.Manager
REVIEWED BY
/ K.N.Kim / Manager
PREPARED BY
/ Y.S.Kang / Engineer
Please return 1 copy for your confirmation with TV Products Engineering Dept.
your signature and comments. LG. Philips LCD Co., Ltd
Ver. 0.3 Nov.10, 2004 1 / 28
LC260WX2
Liquid Crystal Display
Product Specification
CONTENTS
NO. ITEM Page
- COVER 1
- CONTENTS 2
- RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1 ELECTRICAL CHARACTREISTICS 6
2 INTERFACE CONNECTIONS 8
3 SIGNAL TIMING SPECIFICATIONS 12
4 SIGNAL TIMING WAVEFORMS 13
5 COLOR INPUT DATA REFERNECE 14
6 POWER SEQUENCE 15
4 OPTICAL SFECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 21
6 RELIABLITY 24
7 INTERNATIONAL STANDARDS 25
1 SAFETY
2 EMC
8 PACKING 26
1 DESIGNATION OF LOT MARK
2 PACKING FORM
9 PRECAUTIONS 27
Ver. 0.3 Nov.10, 2004 2 / 28
LC260WX2
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision
Date Page Description
No.
Ver 0.0 Sep.13, 2004 First draft
Ver 0.1 Nov.02, 2004 p11 Inverter Pin Map change
Ver 0.2 Nov.04, 2004 p20 Gray scale
Ver 0.3 Nov.30, 2004 p16 Inverter Sequence Change
Ver. 0.3 Nov.10, 2004 3 / 28
LC260WX2
Liquid Crystal Display
Product Specification
1. General Description
The LC260WX2 is a Color Active Matrix Liquid Crystal Display with an integral External
Electrode Fluorescent Lamp(EEFL) backlight system. The matrix employs a-Si Thin Film
Transistor as the active element. It is a transmissive type display operating in the normally
black mode. This TFT-LCD has a 26.0 inch diagonally measured active display area with
WXGA resolution (768 vertical by 1366 horizontal pixel array). Each pixel is divided into
Red,Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or
the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16,7M(True) colors. The LC260WX2 has been
designed to apply the LVDS interface. It is intended to support LCD TV, PCTV where high
brightness, super wide viewing angle, high color gamut, high color depth, and fast response
time are important.
RGB(Mini-LVDS)
Source Driver Circuit
S1 S1366
G1
Gate Driver Circuit
+12.0V
Timing Controller
LVDS CN1
5pair [LVDS Rx & Mini-LVDS
Option
(30pin) Tx integrated]
TFT - LCD Panel
