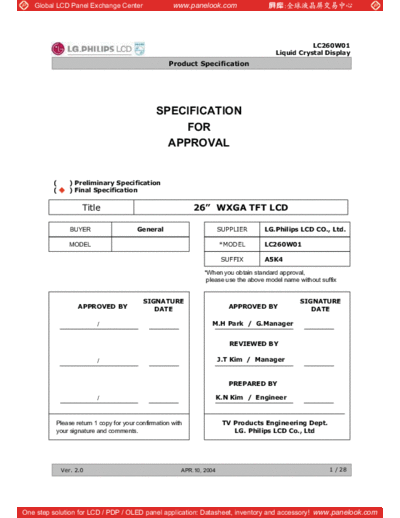

Image preview - the first page of the document
![Panel_LG-Philips_LCD_LC260W01-A5K4_0_[DS]](/pics/5e96c0ef810cb.gif)
>> Download Panel_LG-Philips_LCD_LC260W01-A5K4_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LC260W01
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 26" WXGA TFT LCD
BUYER General SUPPLIER LG.Philips LCD CO., Ltd.
MODEL *MODEL LC260W01
SUFFIX A5K4
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY DATE APPROVED BY DATE
/ M.H Park / G.Manager
REVIEWED BY
/ J.T Kim / Manager
PREPARED BY
/ K.N Kim / Engineer
Please return 1 copy for your confirmation with TV Products Engineering Dept.
your signature and comments. LG. Philips LCD Co., Ltd
Ver. 2.0 APR.10, 2004 1 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LC260W01
Liquid Crystal Display
Product Specification
CONTENTS
NO. ITEM Page
- COVER 1
- CONTENTS 2
- RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1 ELECTRICAL CHARACTREISTICS 6
2 INTERFACE CONNECTIONS 8
3 SIGNAL TIMING SPECIFICATIONS 12
4 SIGNAL TIMING WAVEFORMS 13
5 COLOR INPUT DATA REFERNECE 14
6 POWER SEQUENCE 15
4 OPTICAL SFECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 21
6 RELIABLITY 24
7 INTERNATIONAL STANDARDS 25
1 SAFETY
2 EMC
8 PACKING 26
1 DESIGNATION OF LOT MARK
2 PACKING FORM
9 PRECAUTIONS 27
Ver. 2.0 APR.10, 2004 2 / 28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LC260W01
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision
Date Page Description
No.
Ver 1.0 FEB.03, 2004 Final Specifications
Ver 2.0 APR.10, 2004 Final update
1 - Changed the suffix of LC260W01
(A5K1 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
