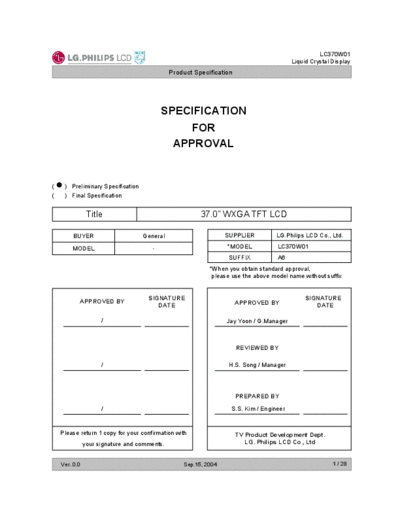

Image preview - the first page of the document
![Panel_LG-Philips_LCD_LC370W01-A6_0_[DS]](/pics/5eaf644778813.gif)
>> Download Panel_LG-Philips_LCD_LC370W01-A6_0_[DS] documenatation <<
Text preview - extract from the document
LC370W01
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 37.0" WXGA TFT LCD
BUYER General SUPPLIER LG.Philips LCD Co., Ltd.
MODEL - *MODEL LC370W01
SUFFIX A6
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ Jay Yoon / G.Manager
REVIEWED BY
/ H.S. Song / Manager
PREPARED BY
/ S.S. Kim / Engineer
Please return 1 copy for your confirmation with TV Product Development Dept.
your signature and comments. LG. Philips LCD Co., Ltd
Ver. 0.0 Sep.15, 2004 1 / 28
LC370W01
Liquid Crystal Display
Product Specification
Contents
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 12
3-4 SIGNAL TIMING WAVEFORMS 13
3-5 COLOR INPUT DATA REFERENCE 14
3-6 POWER SEQUENCE 15
4 OPTICAL SPECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 21
6 RELIABILITY 24
7 INTERNATIONAL STANDARDS 25
7-1 SAFETY 25
7-2 EMC 25
8 PACKING 26
8-1 DESIGNATION OF LOT MARK 26
8-2 PACKING FORM 26
9 PRECAUTIONS 27
9-1 MOUNTING PRECAUTIONS 27
9-2 OPERATING PRECAUTIONS 27
9-3 ELECTROSTATIC DISCHARGE CONTROL 28
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 28
9-5 STORAGE 28
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 28
Ver. 0.0 Sep.15, 2004 2 / 28
LC370W01
Liquid Crystal Display
Product Specification
Record of Revisions
Revision No. Revision Date Page Description
0.0 Sep.15, 2004 - Preliminary Specification(First Draft)
Ver. 0.0 Sep.15, 2004 3 / 28
LC370W01
Liquid Crystal Display
Product Specification
1. General Description
LC370W01 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 37.02 inch diagonally
measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus presenting a palette of more than 16.7M(true) colors.
It has been designed to apply the 8-bit 1 port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
RGB
Source Driver Circuit
S1 S1366
G1
+12.0V
Gate Driver Circuit
LVDS CN1
Timing Controller
5pair (LVDS Rx integrated)
(30pin)
Option TFT - LCD Panel
