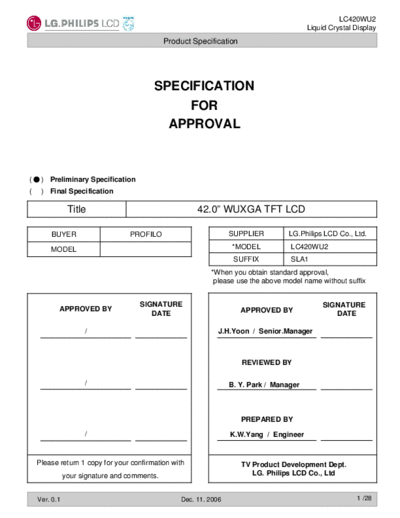

Image preview - the first page of the document
![Panel_LG-Philips_LCD_LC420WU2-SLA1_0_[DS]](/pics/5eaf64e182c25.gif)
>> Download Panel_LG-Philips_LCD_LC420WU2-SLA1_0_[DS] documenatation <<
Text preview - extract from the document
LC420WU2
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 42.0" WUXGA TFT LCD
BUYER PROFILO SUPPLIER LG.Philips LCD Co., Ltd.
MODEL *MODEL LC420WU2
SUFFIX SLA1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J.H.Yoon / Senior.Manager
REVIEWED BY
/ B. Y. Park / Manager
PREPARED BY
/ K.W.Yang / Engineer
Please return 1 copy for your confirmation with TV Product Development Dept.
your signature and comments. LG. Philips LCD Co., Ltd
Ver. 0.1 Dec. 11. 2006 1 /28
LC420WU2
Liquid Crystal Display
Product Specification
CONTENTS
Number ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 12
3-4 SIGNAL TIMING WAVEFORMS 13
3-5 COLOR DATA REFERENCE 14
3-6 POWER SEQUENCE 15
4 OPTICAL SPECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 21
6 RELIABILITY 24
7 INTERNATIONAL STANDARDS 25
7-1 SAFETY 25
7-2 EMC 25
8 PACKING 26
8-1 DESIGNATION OF LOT MARK 26
8-2 PACKING FORM 26
9 PRECAUTIONS 27
9-1 MOUNTING PRECAUTIONS 27
9-2 OPERATING PRECAUTIONS 27
9-3 ELECTROSTATIC DISCHARGE CONTROL 28
9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 28
9-5 STORAGE 28
9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 28
Ver. 0.1 Dec. 11. 2006 2 /28
LC420WU2
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision No. Revision Date Page Description
0.1 Dec.11, 2006 - Preliminary Specification(First Draft)
Ver. 0.1 Dec. 11. 2006 3 /28
LC420WU2
Liquid Crystal Display
Product Specification
1. General Description
The LC420WU2 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 42.02 inch diagonally
measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7M(true) colors.
It has been designed to apply the 8-bit 2-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.
Mini-LVDS(RGB)
SDRAM EEPROM
Source Driver Circuit
MEM
RGB SCL SDA S1 S1920
CTRL
+12.0V
G1
Timing Controller
LVDS [LVDS Rx + DCR + ODC Gate Driver Circuit
CN1
2Port (51pin) integrated]
TFT - LCD Panel
DCR (1920 RGB 1080 pixels)
Enable
