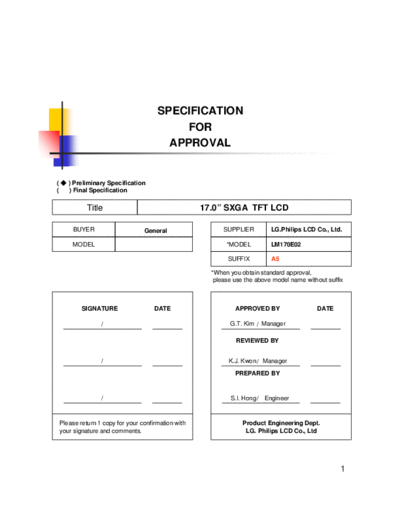

Image preview - the first page of the document
![Panel_LG-Philips_LCD_LM170E02-A5_0_[DS]](/pics/5eaf6761d73af.gif)
>> Download Panel_LG-Philips_LCD_LM170E02-A5_0_[DS] documenatation <<
Text preview - extract from the document
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 17.0" SXGA TFT LCD
BUYER General SUPPLIER LG.Philips LCD Co., Ltd.
MODEL *MODEL LM170E02
SUFFIX A5
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE DATE APPROVED BY DATE
/ G.T. Kim / Manager
REVIEWED BY
/ K.J. Kwon / Manager
PREPARED BY
/ S.I. Hong / Engineer
Please return 1 copy for your confirmation with Product Engineering Dept.
your signature and comments. LG. Philips LCD Co., Ltd
1
CONTENTS
NO. ITEM Page
- COVER 1
- CONTENTS 2
- RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 12
3-4 SIGNAL TIMING WAVEFORMS 13
3-5 COLOR INPUT DATA REFERANCE 14
3-6 POWER SEQUENCE 15
3-7 VCC POWER DIP CONDITION 16
4 OPTICAL SPECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 21
6 RELIABILITY 24
7 INTERNATIONAL STANDARDS 25
7-1 SAFETY 25
7-2 EMC 25
8 PACKING 26
8-1 DESIGNATION OF LOT MARK 26
8-2 PACKING FORM 26
9 PRECAUTIONS 27
2
RECORD OF REVISIONS
Revision No Date Page Description
Ver 0.1 Dec.29.2004 Preliminary Specifications
3
1. General Description
The LM170E02-A5 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally white mode. This TFT-LCD has a 17.0 inch diagonal
measured active display area with SXGA resolution(1024 vertical by 1280 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16.2M colors with FRC(Frame Rate Control).
The LM170E02-A5 has been designed to apply the interface method that enables low power, high speed,low
EMI. FPD Link or compatible must be used as a LVDS(Low Voltage Differential Signaling) chip.
The LM170E02-A5 is intended to support applications where thin thickness,wide viewing angle, low power are
critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels,
the LM170E02-A5 characteristics provide an excellent flat panel display for office automation products such as
monitors.
Column Driver circuit
S1 S1280
LVDS
pair #1
Column Driver Circuit
G1
LVDS LVDS Rx &
Row Driver circuit
pair #2
Timing Controller
CN1
(30pin) TFT-LCD
(1280 x RGB x 1024 pixels)
+5.0V Power G1024
VCC Circuit
Block
CN2,3
CN4,5
Backlight Assembly(4CCFL)
Figure 1. Block diagram
General Features
Active screen size 17.0 inch (43.27cm) diagonal
