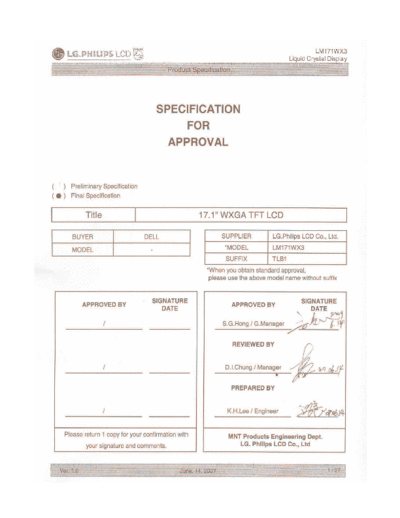

Image preview - the first page of the document
![Panel_LG-Philips_LCD_LM171WX3-TLB1_0_[DS]](/pics/5eaf6776c3f19.gif)
>> Download Panel_LG-Philips_LCD_LM171WX3-TLB1_0_[DS] documenatation <<
Text preview - extract from the document
LM171WX3
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
(
) Final Specification
Title 17.1" WXGA TFT LCD
BUYER DELL SUPPLIER LG.Philips LCD Co., Ltd.
MODEL - *MODEL LM171WX3
SUFFIX TLB1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ S.G.Hong / G.Manager
REVIEWED BY
/ D.I.Chung / Manager
PREPARED BY
/ K.H.Lee / Engineer
Please return 1 copy for your confirmation with MNT Products Engineering Dept.
your signature and comments. LG. Philips LCD Co., Ltd
Ver. 1.0 June, 14, 2007 1 / 27
LM171WX3
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 9
3-3 SIGNAL TIMING SPECIFICATIONS 11
3-4 SIGNAL TIMING WAVEFORMS 12
3-5 COLOR INPUT DATA REFERNECE 13
3-6 POWER SEQUENCE 14
3-7 VLCD POWER DIP CONDITION 15
4 OPTICAL SFECIFICATIONS 16
5 MECHANICAL CHARACTERISTICS 20
6 RELIABILITY 23
7 INTERNATIONAL STANDARDS 24
7-1 SAFETY 24
7-2 EMC 24
8 PACKING 25
8-1 DESIGNATION OF LOT MARK 25
8-2 PACKING FORM 25
9 PRECAUTIONS 26
Ver. 1.0 June, 14, 2007 2 / 27
LM171WX3
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision No Revision Date Page DESCRIPTION
0.0 March.28. 2007
0.1 April.20.2007 4,7 Back Light Power consumption is updated.
9 LCD connector change from JAE,P two,UJU to P two, UJU
10 Back Light connector change from JST to YEONHO.
21,22 Mechanical drawing is changed. Because B/L connector is changed.
0.2 May,22,2007 10 Typical error of B/L connector is corrected from Gray to Gry.
14 T6 time is deleted.
16 Gamma specification is determined.
17 Gray scale specification corrects typographical error.
Inrush current updated. Typical error of Mosaic pattern is corrected
0.3 May.25.2007 6
from 63gray to 255gray
1.0 June, 14, 2007 16 Color Coordinates is corrected.
23 Environment test condition is changed.
25 Packing information is updated.
Ver. 1.0 June, 14, 2007 3 / 27
LM171WX3
Liquid Crystal Display
Product Specification
1. General Description
LM171WX3-TLB1 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a
transmissive type display operating in the normally white mode. It has a 17.1 inch diagonally measured active
display area with WXGA+ resolution (1440 vertical by 900 horizontal pixel array) Each pixel is divided into Red,
Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the
sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than
16,7M colors with Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method
that enables low power, high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low Voltage
Differential Signaling) chip. It is intended to support applications where thin thickness, wide viewing angle, low
power are critical factors and graphic displays are important. In combination with the vertical arrangement of
the sub-pixels, the LM171WX3-TLB1 characteristics provide an excellent flat panel display for office
automation products such as monitors.
RGB,DLK,DE
Hsync,Vsync RGB
(LVDS 2Port) Source Driver Circuit
CN1 Timing Controller 1 1440
(30pin) (LVDS Rx integrated)
1
VLCD+5V
Gate Driver Circuit
TFT - LCD Panel
