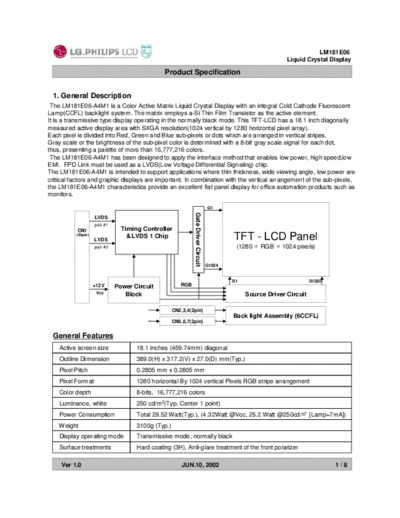

Image preview - the first page of the document



>> Download Panel_LG-Philips_LCD_LM181E06-A4M1_0_[DS] documenatation <<

Text preview - extract from the document

                                                                                                                         LM181E06
                                                                                                              Liquid Crystal Display

                                               Product Specification


 1. General Description
 The LM181E06-A4M1 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. This TFT-LCD has a 18.1 inch diagonally
measured active display area with SXGA resolution(1024 vertical by 1280 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16,777,216 colors.
 The LM181E06-A4M1 has been designed to apply the interface method that enables low power, high speed,low
EMI. FPD Link must be used as a LVDS(Low Voltage Differential Signaling) chip.
The LM181E06-A4M1 is intended to support applications where thin thickness, wide viewing angle, low power are
critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels,
the LM181E06-A4M1 characteristics provide an excellent flat panel display for office automation products such as
monitors.

                                                                                   G1
                                                             Gate Driver Circuit


                    LVDS
                    pair #1
           CN1                  Timing Controller
          (30pin)
                    LVDS
                                 PLVDS 1 Chip                                              TFT - LCD Panel
                    pair #2                                                                 (1280
