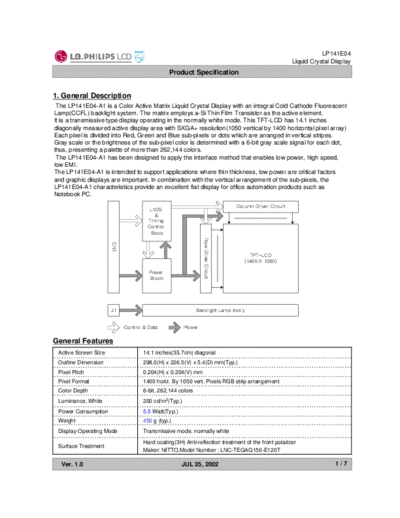

Image preview - the first page of the document
![Panel_LG-Philips_LCD_LP141E04_0_[DS]](/pics/5eaf69f1a08b3.gif)
>> Download Panel_LG-Philips_LCD_LP141E04_0_[DS] documenatation <<
Text preview - extract from the document
LP141E04
Liquid Crystal Display
Product Specification
1. General Description
The LP141E04-A1 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally white mode. This TFT-LCD has 14.1 inches
diagonally measured active display area with SXGA+ resolution(1050 vertical by 1400 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot,
thus, presenting a palette of more than 262,144 colors.
The LP141E04-A1 has been designed to apply the interface method that enables low power, high speed,
low EMI.
The LP141E04-A1 is intended to support applications where thin thickness, low power are critical factors
and graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the
LP141E04-A1 characteristics provide an excellent flat display for office automation products such as
Notebook PC.
jGkGj
s}kzG
M
{G
jG
i
yGkGj
juX
{m{Tsjk
OX[WWGGXW\WP
wG
i
qX iGsGhN
ajGMGk awG
General Features
Active Screen Size 14.1 inches(35.7cm) diagonal
Outline Dimension 298.0(H) x 226.5(V) x 5.4(D) mm(Typ.)
Pixel Pitch 0.204(H) x 0.204(V) mm
Pixel Format 1400 horiz. By 1050 vert. Pixels RGB strip arrangement
Color Depth 6-bit, 262,144 colors
Luminance, White 200 cd/m2(Typ.)
Power Consumption 5.5 Watt(Typ.)
Weight 450 g (typ.)
Display Operating Mode Transmissive mode, normally white
Hard coating(3H) Anti-reflection treatment of the front polarizer
Surface Treatment
Maker: NITTO,Model Number : LNC-TEGAG150-E120T
Ver. 1.0 JUL 25, 2002 1/7
LP141E04
Liquid Crystal Display
Product Specification
2. Electrical Specifications
The LP141E04-A1 requires two power inputs. One is employed to power the LCD electronics and to drive
the TFT array and liquid crystal. The second input which powers the CCFL, is typically generated by an
inverter. The inverter is an external unit to the LCD.
Table 1. ELECTRICAL CHARACTERISTICS
Values
Parameter Symbol Unit Notes
Min Typ Max
MODULE :
Power Supply Input Voltage VCC 3.0 3.3 3.6 Vdc
Power Supply Input Current Window ICC - 470 540 mA 1
Full Black - - 490 560 mA
2 by 2 Vertical Line - - 600 680 mA
Power Consumption Window Pc - 1.6 2.0 Watt 1
Differential Impedance Zm 90 100 110 ohm 2
LAMP :
Operating Voltage VBL 613(6.5mA) 619(6.3mA) 845(2.0mA) VRMS 3
Operating Current IBL 2.0 6.3 6.5 mARMS 4
Established Starting Voltage Vs 5
