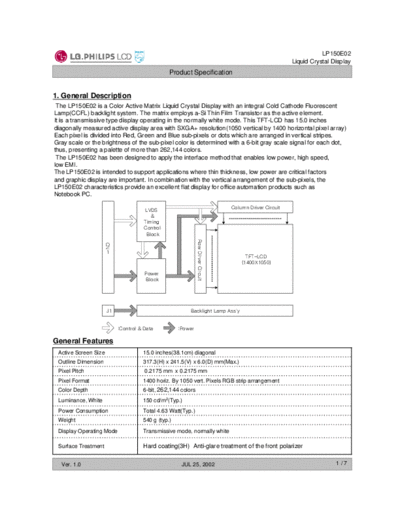

Image preview - the first page of the document



>> Download Panel_LG-Philips_LCD_LP150E02-A2P1_0_[DS] documenatation <<

Text preview - extract from the document

                                                                                                     LP150E02
                                                                                          Liquid Crystal Display
                                            Product Specification


1. General Description
 The LP150E02 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally white mode. This TFT-LCD has 15.0 inches
diagonally measured active display area with SXGA+ resolution(1050 vertical by 1400 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot,
thus, presenting a palette of more than 262,144 colors.
 The LP150E02 has been designed to apply the interface method that enables low power, high speed,
low EMI.
The LP150E02 is intended to support applications where thin thickness, low power are critical factors
and graphic display are important. In combination with the vertical arrangement of the sub-pixels, the
LP150E02 characteristics provide an excellent flat display for office automation products such as
Notebook PC.

                                                                     jGkGj
                                  s}kzG
                                    M
                                 {G
                                 j
                                  i
                                                         y k j
                     ju




                      :
                                                                           {m{Tsjk
                                                                         OX[WWXW\WP

                                  wG
                                   i




                      qX                            iGs hN


                           ajGMGk               awG

General Features
 Active Screen Size              15.0 inches(38.1cm) diagonal
 Outline Dimension               317.3(H) x 241.5(V) x 6.0(D) mm(Max.)
 Pixel Pitch                      0.2175 mm x 0.2175 mm
 Pixel Format                    1400 horiz. By 1050 vert. Pixels RGB strip arrangement
 Color Depth                     6-bit, 262,144 colors
 Luminance, White                150 cd/m2(Typ.)
 Power Consumption               Total 4.63 Watt(Typ.)
 Weight                          540 g (typ.)

 Display Operating Mode          Transmissive mode, normally white

 Surface Treatment               Hard coating(3H) Anti-glare treatment of the front polarizer

  Ver. 1.0                                      JUL 25, 2002                                              1/7
                                                                                               LP150E02
                                                                                    Liquid Crystal Display
                                         Product Specification


2. Electrical Specifications


The LP150E02 requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input which powers the CCFL, is typically generated by an
inverter. The inverter is an external unit to the LCD.

                                 Table 1. ELECTRICAL CHARACTERISTICS
                                                              Values
               Parameter              Symbol                                           Unit     Notes
                                                    Min          Typ        Max
  MODULE :
   Power Supply Input Voltage          VCC          3.0          3.3        3.6        Vdc
   Power Supply Input Current           ICC         290        340          390         mA        1
   Power Consumption                    Pc         0.96        1.13         1.29       Watt       1
   Differential Impedance              Zm           90         100          110        ohm        2



  LAMP :
  Operating Voltage                     VBL         655        685          805        VRMS       3
  Operating Current                     IBL         3.0          5.0        6.0       mARMS
  Established Starting Voltage          Vs                                                        4
                      at 25
