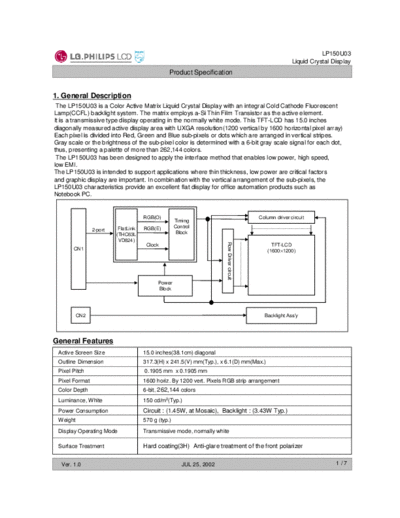

Image preview - the first page of the document



>> Download Panel_LG-Philips_LCD_LP150U03-A2P1_0_[DS] documenatation <<

Text preview - extract from the document

                                                                                                                     LP150U03
                                                                                                          Liquid Crystal Display
                                                Product Specification


1. General Description
 The LP150U03 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally white mode. This TFT-LCD has 15.0 inches
diagonally measured active display area with UXGA resolution(1200 vertical by 1600 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot,
thus, presenting a palette of more than 262,144 colors.
 The LP150U03 has been designed to apply the interface method that enables low power, high speed,
low EMI.
The LP150U03 is intended to support applications where thin thickness, low power are critical factors
and graphic display are important. In combination with the vertical arrangement of the sub-pixels, the
LP150U03 characteristics provide an excellent flat display for office automation products such as
Notebook PC.


                                     RGB(O)                                                Column driver circuit
                                                    Timing
                          FlatLink   RGB(E)         Control
                2-port
                         (THC63L                     Block
                          VD824)
                                                                      Row Driver circuit


                                      Clock                                                     TFT-LCD
       CN1                                                                                    (1600
