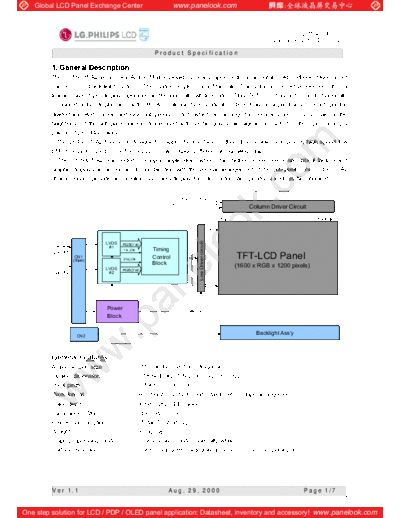

Image preview - the first page of the document
![Panel_LG-Philips_LCD_LP150U1-A2_0_[DS]](/pics/5eaf6ada51711.gif)
>> Download Panel_LG-Philips_LCD_LP150U1-A2_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LP150U1
Liquid Crystal Display
Product Specification
1. General Description
The LP150U1-A2 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) back light system. The matrix employs a-Si Thin Film Transistor as the active element. It is a
transmissive type display operating in the normally white mode. This TFT-LCD has a 15.0 inch diagonally
measured active display area with UXGA resolution(1200 vertical by 1600 horizontal pixel array). Each pixel is
divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the
brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot, thus, presenting a
palette of 262,144 colors.
The LP150U1-A2 has been designed to apply the interface method that enables low power, high speed low
EMI. Flat Link must be used as a LVDS(Low Voltage Differential Signaling) chip.
The LP150U1-A2 is intended to support applications where thin thickness, low power are critical factors and
graphic displays are important. In combination with the vertical arrangement of the sub-pixels, the LP150U1-A2
characteristics provide an excellent flat panel display for office automation products such as Notebook PC.
RGB/Control
Column Driver Circuit
S1 S1600
ASIC G1
Low Driver circuiit
LVDS LVDS RGB(1'st)
#1
1'st _Clk Timing
pair #1
CN1
(30pin) 2'nd_Clk
Control TFT-LCD Panel
LVDS Block (1600 x RGB x 1200 pixels)
LVDS RGB(2'nd)
pair #2 #2
G1200
Power
Block
Backlight Ass'y
CN2
General Features
Active screen size 15.0 inches(38.1cm) diagonal
Outline dimensions 318.5(H) X 241.5(V) X 7.0(D) mm (typ)
Pixel pitch 0.1905 mm X 0.1905 mm
Pixel format 1600 horiz. By 1200 vert. Pixels, RGB stripe arrangement
Color depth 6-bit, 262,144 colors
Luminance, White 150 cd/m2 (typ)
Power Consumption Total 7.0 Watt(typ)
Weight 670g (typ)
Display operating mode transmissive mode, normally white
Surface treatments hard coating(3H), anti-glare treatment of the front polarizer
Ver 1.1 Aug. 29, 2000 Page 1/7
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LP150U1
Liquid Crystal Display
Product Specification
2. Electrical Specifications
2-1. Electrical Characteristics
The LP150U1-A2 requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input which powers the CCFL, is typically generated by an inverter.
The inverter is an external unit to the LCD.
Table 1 ELECTRICAL CHARACTERISTICS
Values
Parameter Symbol Units Notes
Min. Typ. Max.
MODULE:
Power Supply Input Voltage VCC 3.0 3.3 3.6 Vdc
Power Supply Input Current ICC 0.82 A 1
Power Consumption Pc 2.7 Watts 1
LAMP
Operating Voltage VBL 620 VRMS 2
Operating Current IBL 3.0 6.0 7.0 mA
Established Starting Voltage 3
