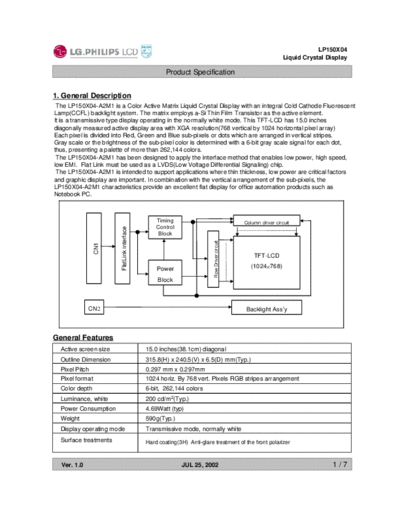

Image preview - the first page of the document



>> Download Panel_LG-Philips_LCD_LP150X04-A2M1_0_[DS] documenatation <<

Text preview - extract from the document

                                                                                                                            LP150X04
                                                                                                                Liquid Crystal Display

                                                     Product Specification


1. General Description
 The LP150X04-A2M1 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally white mode. This TFT-LCD has 15.0 inches
diagonally measured active display area with XGA resolution(768 vertical by 1024 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot,
thus, presenting a palette of more than 262,144 colors.
 The LP150X04-A2M1 has been designed to apply the interface method that enables low power, high speed,
low EMI. Flat Link must be used as a LVDS(Low Voltage Differential Signaling) chip.
 The LP150X04-A2M1 is intended to support applications where thin thickness, low power are critical factors
and graphic display are important. In combination with the vertical arrangement of the sub-pixels, the
LP150X04-A2M1 characteristics provide an excellent flat display for office automation products such as
Notebook PC.



                                                 Timing                                       Column driver circuit
                                                 Control
                        FlatLink interface




                                                  Block
                                                                         Row Driver circuit
                 CN1




                                                                                                  TFT-LCD
                                                                                                 (1024
