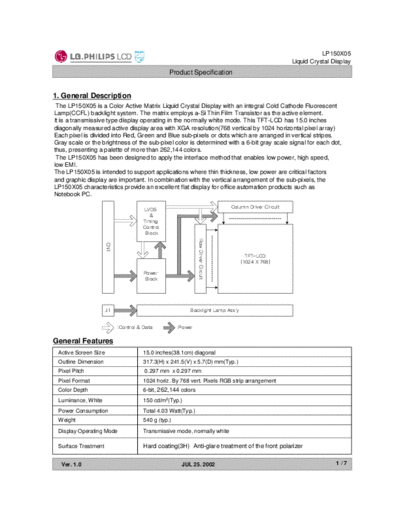

Image preview - the first page of the document



>> Download Panel_LG-Philips_LCD_LP150X05-A2C1_0_[DS] documenatation <<

Text preview - extract from the document

                                                                                                      LP150X05
                                                                                           Liquid Crystal Display
                                             Product Specification


1. General Description
 The LP150X05 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally white mode. This TFT-LCD has 15.0 inches
diagonally measured active display area with XGA resolution(768 vertical by 1024 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 6-bit gray scale signal for each dot,
thus, presenting a palette of more than 262,144 colors.
 The LP150X05 has been designed to apply the interface method that enables low power, high speed,
low EMI.
The LP150X05 is intended to support applications where thin thickness, low power are critical factors
and graphic display are important. In combination with the vertical arrangement of the sub-pixels, the
LP150X05 characteristics provide an excellent flat display for office automation products such as
Notebook PC.
                                                                      jGkGj
                                   s}kzG
                                     M
                                  {G
                                  j
                                   i
                                                          yGkGj
                      juX




                                                                            {m{Tsjk
                                                                          OXWY[GG^]_P

                                  wG
                                  i




                      qX                             iGsGhN


                            ajGMGk               awG

General Features
 Active Screen Size               15.0 inches(38.1cm) diagonal
 Outline Dimension                317.3(H) x 241.5(V) x 5.7(D) mm(Typ.)
 Pixel Pitch                      0.297 mm x 0.297 mm
 Pixel Format                     1024 horiz. By 768 vert. Pixels RGB strip arrangement
 Color Depth                      6-bit, 262,144 colors
 Luminance, White                 150 cd/m2(Typ.)
 Power Consumption                Total 4.03 Watt(Typ.)
 Weight                           540 g (typ.)

 Display Operating Mode           Transmissive mode, normally white

 Surface Treatment                Hard coating(3H) Anti-glare treatment of the front polarizer

  Ver. 1.0                                       JUL 25. 2002                                               1/7
                                                                                               LP150X05
                                                                                    Liquid Crystal Display
                                         Product Specification


2. Electrical Specifications

The LP150X05 requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input which powers the CCFL, is typically generated by an
inverter. The inverter is an external unit to the LCD.


                                 Table 1. ELECTRICAL CHARACTERISTICS
                                                              Values
               Parameter              Symbol                                           Unit     Notes
                                                    Min          Typ        Max
  MODULE :
   Power Supply Input Voltage          VCC          3.0          3.3        3.6        Vdc
   Power Supply Input Current           ICC          -         183          228         mA        1
   Power Consumption                    Pc           -         0.60         0.75       Watt       1
   Differential Impedance              Zm           90         100          110        ohm        2


  LAMP :
  Operating Voltage                     VBL         655        685          805        VRMS       4
  Operating Current                     IBL         3.0          5.0        6.0       mARMS
  Established Starting Voltage          Vs                                                        5
                        at 25
