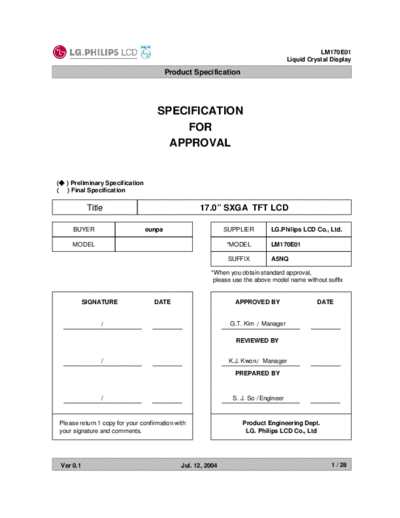

Image preview - the first page of the document
![Panel_LG_Display_LM170E01-A5NC_1_[DS]](/pics/5eafc9fa4dc7a.gif)
>> Download Panel_LG_Display_LM170E01-A5NC_1_[DS] documenatation <<
Text preview - extract from the document
LM170E01
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 17.0" SXGA TFT LCD
BUYER eunpa SUPPLIER LG.Philips LCD Co., Ltd.
MODEL *MODEL LM170E01
SUFFIX A5NQ
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE DATE APPROVED BY DATE
/ G.T. Kim / Manager
REVIEWED BY
/ K.J. Kwon / Manager
PREPARED BY
/ S. J. So / Engineer
Please return 1 copy for your confirmation with Product Engineering Dept.
your signature and comments. LG. Philips LCD Co., Ltd
Ver 0.1 Jul. 12, 2004 1 / 28
LM170E01
Liquid Crystal Display
Product Specification
CONTENTS
NO. ITEM Page
- COVER 1
- CONTENTS 2
- RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTERISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 SIGNAL TIMING SPECIFICATIONS 12
3-4 SIGNAL TIMING WAVEFORMS 13
3-5 COLOR INPUT DATA REFERANCE 14
3-6 POWER SEQUENCE 15
3-7 VCC POWER DIP CONDITION 16
4 OPTICAL SPECIFICATIONS 17
5 MECHANICAL CHARACTERISTICS 21
6 RELIABILITY 24
7 INTERNATIONAL STANDARDS 25
7-1 SAFETY 25
7-2 EMC 25
8 PACKING 26
8-1 DESIGNATION OF LOT MARK 26
8-2 PACKING FORM 26
9 PRECAUTIONS 27
Ver 0.1 Jul. 12, 2004 2 / 28
LM170E01
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision No Date Page Description
Ver 0.1 Jul. 12. 2004 General Specifications
Ver 0.1 Jul. 12, 2004 3 / 28
LM170E01
Liquid Crystal Display
Product Specification
1. General Description
The LM170E01-A5NC is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally white mode. This TFT-LCD has a 17.0 inch diagonal
measured active display area with SXGA resolution(1024 vertical by 1280 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus, presenting a palette of more than 16.2M colors with FRC(Frame Rate Control).
The LM170E01-A5NC has been designed to apply the interface method that enables low power, high speed,low
EMI. FPD Link or compatible must be used as a LVDS(Low Voltage Differential Signaling) chip.
The LM170E01-A5NC is intended to support applications where thin thickness,wide viewing angle, low power are
critical factors and graphic displays are important. In combination with the vertical arrangement of the sub-pixels,
the LM170E01-A5NC characteristics provide an excellent flat panel display for office automation products such as
monitors.
Column Driver circuit
S1 S1280
LVDS
pair #1
Column Driver Circuit
G1
LVDS LVDS Rx &
Row Driver circuit
pair #2
Timing Controller
CN1
(30pin) TFT-LCD
(1280 x RGB x 1024 pixels)
+5.0V Power G1024
VCC Circuit
Block
CN2,3
CN4,5
Backlight Assembly(4CCFL)
Figure 1. Block diagram
General Features
Active screen size 17.0 inch (43.27cm) diagonal
Outline Dimension 358.5(H) x 296.5(V) x 17.0(D) mm(Typ.)
Pixel Pitch 0.264 mm x 0.264 mm
Pixel Format 1280 horiz. by 1024 vert. Pixels. RGB stripe arrangement
Display Colors 16.2M colors
Luminance, white 250 cd/m2(Typ. Center 1 point)
Power Consumption 19.35 Watts(Typ.)
Weight 1890g (Typ.)
Display operating mode Transmissive mode, normally white
Surface treatments Hard coating (3H), Anti-glare treatment of the front polarizer
Ver 0.1 Jul. 12, 2004 4 / 28
LM170E01
Liquid Crystal Display
Product Specification
2. Absolute maximum ratings
The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.
Table 1. Absolute Maximum Ratings
Values
Parameter Symbol Units Notes
Min. Max.
Power Supply Input Voltage VCC 0.3 5.5 V dc At 25
Operating Temperature TOP 0 50 1
Storage Temperature TST 20 60 1
Operating Ambient Humidity HOP 10 90 %RH 1
Storage Humidity HST 10 90 %RH 1
Note : 1. Temperature and relative humidity range are shown in the figure below.
