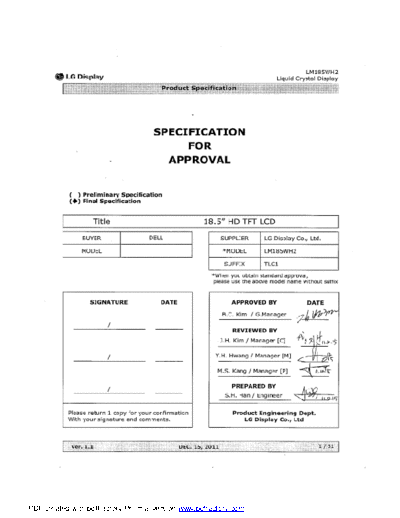

Image preview - the first page of the document
![Panel_LG_Display_LM185WH2-TLC1_0_[DS]](/pics/5eafcb45c46f4.gif)
>> Download Panel_LG_Display_LM185WH2-TLC1_0_[DS] documenatation <<
Text preview - extract from the document
LM185WH2
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
() Final Specification
Title 18.5" HD TFT LCD
BUYER DELL SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LM185WH2
SUFFIX TLC1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE DATE APPROVED BY DATE
B.C. Kim / G.Manager
/
REVIEWED BY
J.H. Kim / Manager [C]
/ Y.H. Hwang / Manager [M]
M.S. Kang / Manager [P]
PREPARED BY
/
S.H. Han / Engineer
Please return 1 copy for your confirmation Product Engineering Dept.
With your signature and comments. LG Display Co., Ltd
Ver. 1.1 DEC. 15, 2011 1 / 31
PDF created with pdfFactory Pro trial version www.pdffactory.com
LM185WH2
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1) ELECTRICAL CHARACTERISTICS 6
2) INTERFACE CONNECTIONS 8
3) LVDS characteristics 11
4) SIGNAL TIMING SPECIFICATIONS 14
5) SIGNAL TIMING WAVEFORMS 15
6) COLOR INPUT DATA REFERNECE 16
7) POWER SEQUENCE 17
8) POWER DIP CONDITION 18
4 OPTICAL SFECIFICATIONS 19
5 MECHANICAL CHARACTERISTICS 24
6 RELIABILITY 27
7 INTERNATIONAL STANDARDS 28
1) SAFETY 28
2) EMC 28
8 PACKING 29
1) DESIGNATION OF LOT MARK 29
2) PACKING FORM 29
9 PRECAUTIONS 30
1) MOUNTING PRECAUTIONS 30
2) OPERATING PRECAUTIONS 30
3) ELECTROSTATIC DISCHARGE CONTROL 31
4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 31
5) STROAGE 31
6) HANDLING PRECAUTIONS FOR PROTECTION FILM 31
Ver. 1.1 DEC. 15, 2011 2 / 31
PDF created with pdfFactory Pro trial version www.pdffactory.com
LM185WH2
Liquid Crystal Display
Product Specification
Record of revisions
Revision No Date Page Description
Ver 0.0 OCT. 11, 2010 Preliminary Specifications
Ver 0.1 DEC. 10, 2010 7 Update the Lamp Array electrical characteristics
19 Update the optical characteristics
Color Coordinates (R, G, B)
22 Rectify the Gray scale
Ver 0.2 FEB. 14, 2011 4,6 Update the Electric characteristic
19 Update the color coordinates ( R,G,B)
Ver 1.0 MAR. 17, 2011 Final Specifications
19 Update the color coordinates (Min, Max)
26 Update 2D drawing
Ver 1.1 DEC. 15, 2011 25 Update 2D drawing
Ver. 1.1 DEC. 15, 2011 3 / 31
PDF created with pdfFactory Pro trial version www.pdffactory.com
LM185WH2
Liquid Crystal Display
Product Specification
1. General description
LM185WH2-TLC1 is a Color Active Matrix Liquid Crystal Display with a Light Emitting Diode
( White LED) backlight system without LED Driver. The matrix employs a-Si Thin Film Transistor
as the active element. It is a transmissive type display operating in the normally white mode.
It has a 18.5 inch diagonally measured active display area with HD resolution (768 vertical by
1366 horizontal pixel array) Each pixel is divided into Red, Green and Blue sub-pixels or dots
which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than
16,7M colors with Advanced-FRC(Frame Rate Control). It has been designed to apply the
interface method that enables low power, high speed, low EMI. FPD Link or compatible must be
used as a LVDS chip. It is intended to support applications where thin thickness, wide viewing
angle, low power are critical factors and graphic displays are important. In combination with the
vertical arrangement of the sub-pixels, the LM185WH2-TLC1 characteristics provide an excellent
flat panel display for office automation products such as monitors.
RGB
FIG. 1 Block diagram
Source driver circuit
S1 S1366
G1
LVDS Timing
pair #1 controller
TFT-LCD Panel
CN1
(1366◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
