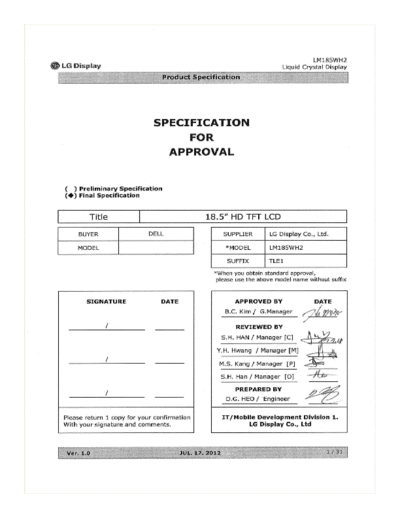

Image preview - the first page of the document
![Panel_LG_Display_LM185WH2-TLE1_0_[DS]](/pics/5eafcb773f21b.gif)
>> Download Panel_LG_Display_LM185WH2-TLE1_0_[DS] documenatation <<
Text preview - extract from the document
LM185WH2
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
() Final Specification
Title 18.5" HD TFT LCD
BUYER DELL SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LM185WH2
SUFFIX TLE1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE DATE APPROVED BY DATE
B.C. Kim / G.Manager
/ REVIEWED BY
S.H. HAN / Manager [C]
Y.H. Hwang / Manager [M]
/
M.S. Kang / Manager [P]
S.H. Han / Manager [O]
PREPARED BY
/
D.G. HEO / Engineer
Please return 1 copy for your confirmation IT/Mobile Development Division 1.
With your signature and comments. LG Display Co., Ltd
Ver. 1.0 JUL. 17. 2012 1 / 31
LM185WH2
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1) ELECTRICAL CHARACTERISTICS 6
2) INTERFACE CONNECTIONS 9
3) LVDS characteristics 12
4) SIGNAL TIMING SPECIFICATIONS 15
5) SIGNAL TIMING WAVEFORMS 16
6) COLOR INPUT DATA REFERNECE 17
7) POWER SEQUENCE 18
8) POWER DIP CONDITION 19
4 OPTICAL SFECIFICATIONS 20
5 MECHANICAL CHARACTERISTICS 25
6 RELIABILITY 27
7 INTERNATIONAL STANDARDS 28
1) SAFETY 28
2) EMC 28
8 PACKING 29
1) DESIGNATION OF LOT MARK 29
2) PACKING FORM 29
9 PRECAUTIONS 30
1) MOUNTING PRECAUTIONS 30
2) OPERATING PRECAUTIONS 30
3) ELECTROSTATIC DISCHARGE CONTROL 31
4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 31
5) STROAGE 31
6) HANDLING PRECAUTIONS FOR PROTECTION FILM 31
Ver. 1.0 JUL. 17. 2012 2 / 31
LM185WH2
Liquid Crystal Display
Product Specification
Record of revisions
Revision No Date Page Description
Ver 0.0 FEB.21.2012 - Preliminary Specifications
Ver 0.1 APR. 18.2012 4 Updated LCMs Weight ( 1350g )
19 Updated LDMs optical data ( color coordinates)
22 Change TCO5.0 Test Conditions
29 Updated Packing information
Ver 0.2 May. 07. 2012 26 Updated LCM's drawing
Ver 1.0 Jul. 17. 2012 - Final specification
10 Add comment ( Wire locking type)
19 Update color coordinate (Rx, Gy, By)
26 Update LCM's drawing
30 Change the Operating precautions
3: (In Higher temperature, it becomes lower.)
Ver. 1.0 JUL. 17. 2012 3 / 31
LM185WH2
Liquid Crystal Display
Product Specification
1. General description
LM185WH2-TLE1 is a Color Active Matrix Liquid Crystal Display with a Light Emitting Diode(LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a
transmissive type display operating in the normally white mode. It has a
18.5 inch diagonally measured active display area with HD resolution (768 vertical by 1366
horizontal pixel array) Each pixel is divided into Red, Green and Blue sub-pixels or dots which
are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined
with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16,7M colors
with Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method
that enables low power, high speed, low EMI. FPD Link or compatible must be used as a
LVDS(Low Voltage Differential Signaling) chip. It is intended to support applications where thin
thickness, wide viewing angle, low power are critical factors and graphic displays are important.
In combination with the vertical arrangement of the sub-pixels, the LM185WH2-TLE1
characteristics provide an excellent flat panel display for office automation products such as
monitors.
RGB
FIG. 1 Block diagram
Source driver circuit
S1 S1366
G1
LVDS Timing
pair #1 controller
TFT-LCD Panel
