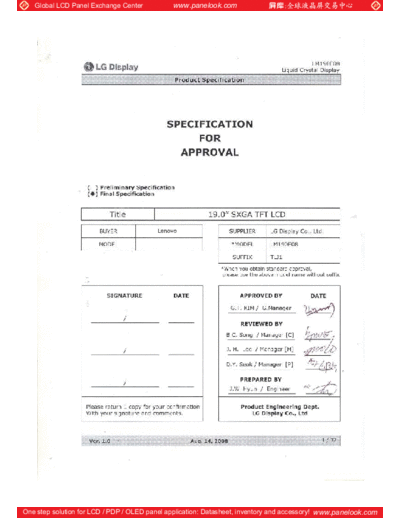

Image preview - the first page of the document
![Panel_LG_Display_LM190E08-TLJ1_0_[DS]](/pics/5eafcbce676af.gif)
>> Download Panel_LG_Display_LM190E08-TLJ1_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LM190E08
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 19.0" SXGA TFT LCD
BUYER Lenovo SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LM190E08
SUFFIX TLJ1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE DATE APPROVED BY DATE
G.T. KIM / G.Manager
/
REVIEWED BY
B.C. Song / Manager [C]
/ J. H. Lee / Manager [M]
D.Y. Seok / Manager [P]
PREPARED BY
/
J.W. Hyun / Engineer
Please return 1 copy for your confirmation Product Engineering Dept.
With your signature and comments. LG Display Co., Ltd
Ver. 1.0 Aug, 14, 2008 1 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LM190E08
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1) ELECTRICAL CHARACTERISTICS 6
2) INTERFACE CONNECTIONS 9
3) LVDS characteristics 12
4) SIGNAL TIMING SPECIFICATIONS 15
5) SIGNAL TIMING WAVEFORMS 16
6) COLOR INPUT DATA REFERNECE 17
7) POWER SEQUENCE 18
8) POWER DIP CONDITION 19
4 OPTICAL SFECIFICATIONS 20
5 MECHANICAL CHARACTERISTICS 25
6 RELIABILITY 28
7 INTERNATIONAL STANDARDS 29
1) SAFETY 29
2) EMC 29
8 PACKING 30
1) DESIGNATION OF LOT MARK 30
2) PACKING FORM 30
9 PRECAUTIONS 31
1) MOUNTING PRECAUTIONS 31
2) OPERATING PRECAUTIONS 31
3) ELECTROSTATIC DISCHARGE CONTROL 32
4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 32
5) STROAGE 32
6) HANDLING PRECAUTIONS FOR PROTECTION FILM 32
Ver. 1.0 Aug, 14, 2008 2 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LM190E08
Liquid Crystal Display
Product Specification
Record of revisions
Revision No Date Page Description
Ver 0.1 Aug,07,2008 Preliminary Specifications.
Ver 1.0 Aug,07,2008 Final Specifications.
Ver. 1.0 Aug, 14, 2008 3 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LM190E08
Liquid Crystal Display
Product Specification
1. General description
LM190E08-TLJ1 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a
transmissive type display operating in the normally white mode. It has a 19.0 inch diagonally measured active
display area with SXGA resolution (1024 vertical by 1280 horizontal pixel array) Each pixel is divided into Red,
Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the
sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than
16,7M colors with Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method
that enables low power, high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low Voltage
Differential Signaling) chip. It is intended to support applications where thin thickness, wide viewing angle, low
power are critical factors and graphic displays are important. In combination with the vertical arrangement of
the sub-pixels, the LM190E08-TLJ1 characteristics provide an excellent flat panel display for office automation
products such as monitors.
RGB
FIG. 1 Block diagram
Source driver circuit
S1 S1280
LVDS G1
pair #1 Timing
LVDS
controller
pair #2 TFT-LCD Panel
(1280 RGB 1024 pixels)
CN1
G1024
+5V Power circuit
VLCD block
CN2 (2pin)
Backlight assembly (2 CCFLs)
CN3 (2pin)
General features
Active screen size 19.0 inches (481.9mm) diagonal
Outline Dimension 396.0(H) x 324.0(V) x 15.5(D) mm(Typ.)
Pixel Pitch 0.098*RGB(H)mm x 0.294(V)mm
Pixel Format 1280 horizontal By 1024 vertical Pixels. RGB stripe arrangement
Interface LVDS 2Port
Color depth 16.7M colors
Luminance, white 250 cd/m2 ( Center 1Point, typ)
Viewing Angle (CR>10) R/L 170(Typ.), U/D 160(Typ.)
Power Consumption Total 14.3W(Typ.), (4.5W@VLCD , 9.75W@IBL =7.5mA)
Weight 2,450g (Typ.)
Display operating mode Transmissive mode, normally White
Surface treatments Hard coating (3H), Anti-glare treatment of the front polarizer
Ver. 1.0 Aug, 14, 2008 4 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LM190E08
Liquid Crystal Display
Product Specification
2. Absolute maximum ratings
The following are maximum values which, if exceeded,
may cause faulty operation or damage to the unit.
Table 1. Absolute maximum ratings
Values
Parameter Symbol Units Notes
Min Max
t
Power Supply Input Voltage VLCD -0.3 +6.0 Vdc At 25
Operating Temperature TOP 0 50 C
Storage Temperature TST -20 60 C
1
Operating Ambient Humidity HOP 10 90 %RH
Storage Humidity HST 10 90 %RH
Note : 1. Temperature and relative humidity range are shown in the figure below.
re
Wet bulb temperature should be 39 C Max, and no cond
condensation of water.
FIG. 2 Temperature and relative humidity
dity
90%
6
60
60%
50 Storage
Wet Bulb
Temperature [ ]
Humidity
[(%)RH]
40
40%
Operation
30
20
10
0
10%
-20 0 10 20 30 40 50 60 70 80
Dry Bulb Temperature [ ]
Ver. 1.0 Aug, 14, 2008 5 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LM190E08
Liquid Crystal Display
Product Specification
3. Electrical specifications
3-1. Electrical characteristics
It requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input power for the CCFL/Backlight, is typically
generated by an inverter. The inverter is an external unit to the LCDs.
Table 2. Electrical characteristics
Values
Parameter Symbol Unit Notes
Min Typ Max
MODULE :
Power Supply Input Voltage VLCD 4.5 5.0 5.5 Vdc
Permissive Power Input Ripple VLCD - - 0.2 V 3
ILCD-MOSAIC - 900 1,050 mA 1
Power Supply Input Current
ILCD-BLACK - 1,090 1,260 mA 2
Power Consumption PLCD - 4.5 5.18 Watt 1
Inrush current IRUSH - - 3.0 A 3
Note :
1. The specified current and power consumption are
