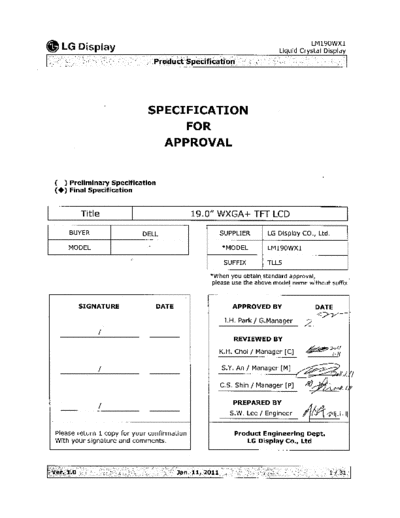

Image preview - the first page of the document
![Panel_LG_Display_LM190WX1-TLL5_0_[DS]](/pics/5eafccca1b7c9.gif)
>> Download Panel_LG_Display_LM190WX1-TLL5_0_[DS] documenatation <<
Text preview - extract from the document
LM190WX1
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
() Final Specification
Title 19.0" WXGA+ TFT LCD
BUYER DELL SUPPLIER LG Display CO., Ltd.
MODEL *MODEL LM190WX1
SUFFIX TLL5
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE DATE APPROVED BY DATE
J.H. Park / G.Manager
/
REVIEWED BY
K.H. Choi / Manager [C]
/ S.Y. An / Manager [M]
C.S. Shin / Manager [P]
PREPARED BY
/
S.W. Lee / Engineer
Please return 1 copy for your confirmation Product Engineering Dept.
With your signature and comments. LG Display Co., Ltd
Ver. 1.0 Jan. 11, 2011 1 / 31
LM190WX1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1) ELECTRICAL CHARACTERISTICS 6
2) INTERFACE CONNECTIONS 9
3) LVDS INPUT CHARACTERISTICS 12
4) SIGNAL TIMING SPECIFICATIONS 15
5) SIGNAL TIMING WAVEFORMS 16
6) COLOR INPUT DATA REFERNECE 17
7) POWER SEQUENCE 18
8) POWER DIP CONDITION 19
4 OPTICAL SFECIFICATIONS 20
5 MECHANICAL CHARACTERISTICS 24
6 RELIABILITY 27
7 INTERNATIONAL STANDARDS 28
1) SAFETY 28
2) EMC 28
3) Environment 28
8 PACKING 29
1) DESIGNATION OF LOT MARK 29
2) PACKING FORM 29
9 PRECAUTIONS 30
1) MOUNTING PRECAUTIONS 30
2) OPERATING PRECAUTIONS 30
3) ELECTROSTATIC DISCHARGE CONTROL 31
4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 31
5) STROAGE 31
6) HANDLING PRECAUTIONS FOR PROTECTION FILM 31
Ver. 1.0 Jan. 11, 2011 2 / 31
LM190WX1
Liquid Crystal Display
Product Specification
Record of Revisions
Revision No Date Page Description
Ver. 0.1 Aug. 23, 2010 First Draft, Preliminary Specifications.
Ver. 0.2 Dec. 07, 2010 15 Update Timing Table & Note
Ver. 1.0 Jan. 11, 2011 Final Specifications.
Ver. 1.0 Jan. 11, 2011 3 / 31
LM190WX1
Liquid Crystal Display
Product Specification
1. General Description
LM190WX1-TLL5 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a
transmissive type display operating in the normally white mode. It has a 19.0 inch diagonally measured active
display area with WXGA+ resolution (900 vertical by 1440 horizontal pixel array) Each pixel is divided into Red,
Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the
sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than
16,7M colors with Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method
that enables low power, high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low Voltage
Differential Signaling) chip. It is intended to support applications where thin thickness, wide viewing angle, low
power are critical factors and graphic displays are important. In combination with the vertical arrangement of
the sub-pixels, the LM190WX1-TLL5 characteristics provide an excellent flat panel display for office automation
products such as monitors.
RGB
FIG. 1 Block Diagram
Source Driver Circuit
S1 S1440
LVDS G1
pair #1
CN1 Timing Controller
(30pin)
LVDS
LVDS 1 Chip
pair #2 TFT - LCD Panel
