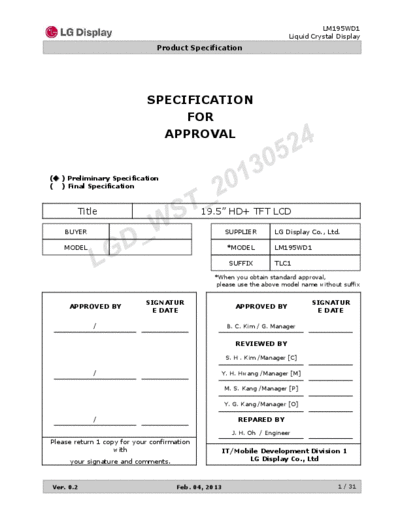

Image preview - the first page of the document
![Panel_LG_Display_LM195WD1-TLC1_0_[DS]](/pics/5eafcd1477c5e.gif)
>> Download Panel_LG_Display_LM195WD1-TLC1_0_[DS] documenatation <<
Text preview - extract from the document
LM195WD1
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 19.5" HD+ TFT LCD
BUYER SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LM195WD1
SUFFIX TLC1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATUR SIGNATUR
APPROVED BY APPROVED BY
E DATE E DATE
/ B. C. Kim / G. Manager
REVIEWED BY
S. H . Kim /Manager [C]
/ Y. H. Hwang /Manager [M]
M. S. Kang /Manager [P]
Y. G. Kang /Manager [O]
/ REPARED BY
J. H. Oh / Engineer
Please return 1 copy for your confirmation
with IT/Mobile Development Division 1
your signature and comments. LG Display Co., Ltd
Ver. 0.2 Feb. 04, 2013 1 / 31
LM195WD1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1) ELECTRICAL CHARACTERISTICS 6
2) INTERFACE CONNECTIONS 8
3) LVDS characteristics 11
4) SIGNAL TIMING SPECIFICATIONS 14
5) SIGNAL TIMING WAVEFORMS 15
6) COLOR INPUT DATA REFERNECE 16
7) POWER SEQUENCE 18
8) POWER DIP CONDITION 19
4 OPTICAL SFECIFICATIONS 19
5 MECHANICAL CHARACTERISTICS 23
6 RELIABILITY 26
7 INTERNATIONAL STANDARDS 27
1) SAFETY 27
2) EMC 27
3) ENVIRONMENT 27
8 PACKING 28
1) DESIGNATION OF LOT MARK 28
2) PACKING FORM 28
9 PRECAUTIONS 29
1) MOUNTING PRECAUTIONS 29
2) OPERATING PRECAUTIONS 29
3) ELECTROSTATIC DISCHARGE CONTROL 30
4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 30
5) STROAGE 30
6) HANDLING PRECAUTIONS FOR PROTECTION FILM 30
Ver. 0.2 Feb. 04, 2013 2 / 31
LM195WD1
Liquid Crystal Display
Product Specification
Record of revisions
Revision Revision
Page Description
No Date
0.0 Sep. 03. 2012 - First Draft (Preliminary)
0.1 Dec. 12. 2012 4,6 Update Power consumption, Electrical specification
26,27 Update Front & Rear Drawing
0.2 Feb. 04. 2013 7 Update LED Array electrical characteristics
19 Update color coordinates
22,23 Add gamma specification
28 Update safety & Environment specification
Ver. 0.2 Feb. 04, 2013 3 / 31
LM195WD1
Liquid Crystal Display
Product Specification
1. General description
LM195WD1-TLC1 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting
Diode(LED) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally white mode. It has a 19.5 inch
diagonally measured active display area with HD+ resolution (900 vertical by 1600 horizontal pixel
array) Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in
vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with
a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16.7M colors with
Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method that
enables low power, high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low
Voltage Differential Signaling) chip. It is intended to support applications where thin thickness,
wide viewing angle, low power are critical factors and graphic displays are important. In
combination with the vertical arrangement of the sub-pixels, the LM195WD1-TLC1 characteristics
provide an excellent flat panel display for office automation products such as monitors.
RGB
FIG. 1 Block diagram
Source driver circuit
S1 S1600
LVDS G1
pair #1
Timing
LVDS
controller
pair #2 TFT-LCD Panel
