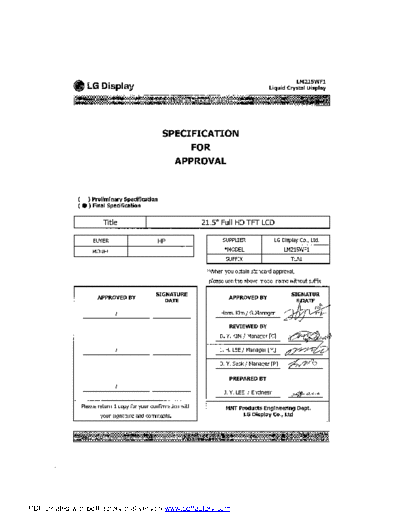

Image preview - the first page of the document
![Panel_LG_Display_LM215WF1-TLB1_0_[DS]](/pics/5eafce3f57ca4.gif)
>> Download Panel_LG_Display_LM215WF1-TLB1_0_[DS] documenatation <<
Text preview - extract from the document
LM215WF1
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 21.5" Full HD TFT LCD
BUYER HP SUPPLIER LG Display Co., Ltd.
HP
MODEL *MODEL LM215WF1
SUFFIX TLB1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATUR
APPROVED BY APPROVED BY
DATE E DATE
/ Hans. Kim / G.Manager
REVIEWED BY
D. Y. KIM / Manager [C]
/ J. H. LEE / Manager [M]
D. Y. Seok / Manager [P]
PREPARED BY
/
J. Y. LEE / Engineer
Please return 1 copy for your confirmation with MNT Products Engineering Dept.
your signature and comments. LG Display Co., Ltd
Ver. 1.0 Dec. 12 . 2008 1 / 31
PDF created with pdfFactory trial version www.pdffactory.com
LM215WF1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 9
3-3 SIGNAL TIMING SPECIFICATIONS 13
3-4 SIGNAL TIMING WAVEFORMS 14
3-5 COLOR INPUT DATA REFERNECE 15
3-6 POWER SEQUENCE 16
3-7 VLCD POWER DIP CONDITION 17
4 OPTICAL SFECIFICATIONS 18
5 MECHANICAL CHARACTERISTICS 24
6 RELIABLITY 25
7 INTERNATIONAL STANDARDS 28
7-1 SAFETY 28
7-2 EMC 28
8 PACKING 29
8-1 DESIGNATION OF LOT MARK 29
8-2 PACKING FORM 29
9 PRECAUTIONS 30
Ver. 1.0 Dec. 12 . 2008 2 / 31
PDF created with pdfFactory trial version www.pdffactory.com
LM215WF1
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision
Revision Date Page Description
No
0.1 JUL. 23. 2008 - First Draft(Preliminary)
0.2 SEP. 22. 2008 4 Update Power, weight
6 Update electrical characteristic (logic power, Inverter power)
12 Update signal timing spec
16 Update Color coordinate (RGB)
23 Update weight (2100g)
0.21 OCT 07, 2008 3, 23 Change POL harness (2H ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
