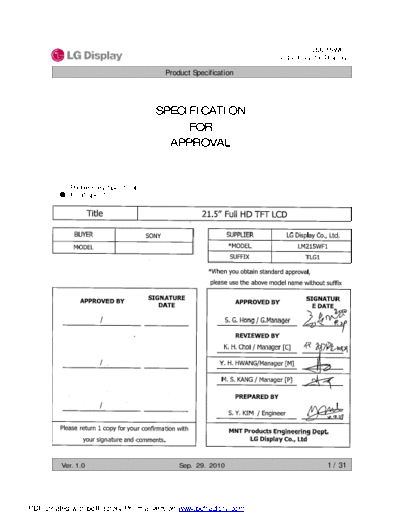

Image preview - the first page of the document
![Panel_LG_Display_LM215WF1-TLG1_0_[DS]](/pics/5eafce70decc0.gif)
>> Download Panel_LG_Display_LM215WF1-TLG1_0_[DS] documenatation <<
Text preview - extract from the document
LM215WF1
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
() Final Specification
Title 21.5" Full HD TFT LCD
BUYER SONY SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LM215WF1
SUFFIX TLG1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATUR
APPROVED BY APPROVED BY
DATE E DATE
/ S. G. Hong / G.Manager
REVIEWED BY
K. H. Choi / Manager [C]
/ Y. H. HWANG/Manager [M]
M. S. KANG / Manager [P]
PREPARED BY
/
S. Y. KIM / Engineer
Please return 1 copy for your confirmation with MNT Products Engineering Dept.
your signature and comments. LG Display Co., Ltd
Ver. 1.0 Sep. 29. 2010 1 / 31
PDF created with pdfFactory Pro trial version www.pdffactory.com
LM215WF1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 9
3-3 SIGNAL TIMING SPECIFICATIONS 13
3-4 SIGNAL TIMING WAVEFORMS 14
3-5 COLOR INPUT DATA REFERNECE 15
3-6 POWER SEQUENCE 16
3-7 VLCD POWER DIP CONDITION 17
4 OPTICAL SFECIFICATIONS 18
5 MECHANICAL CHARACTERISTICS 24
6 RELIABLITY 25
7 INTERNATIONAL STANDARDS 28
7-1 SAFETY 28
7-2 EMC 28
7-3 Environment 28
8 PACKING 29
8-1 DESIGNATION OF LOT MARK 29
8-2 PACKING FORM 29
9 PRECAUTIONS 30
Ver. 1.0 Sep. 29. 2010 2 / 31
PDF created with pdfFactory Pro trial version www.pdffactory.com
LM215WF1
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision
Revision Date Page Description
No
0.1 Jun. 23. 2010 - First Draft(Preliminary)
0.2 Jul. 28. 2010 6 Permissive Power Input Ripple change(100mV250mV)
26 2D Drawing updated ( Notes 9 added)
0.3 Aug. 18. 2010 25 2D Drawing updated (Cover shield shape update)
26 2D Drawing updated (wire fix tape update)
1.0 Sep. 29. 2010 - Final CAS
