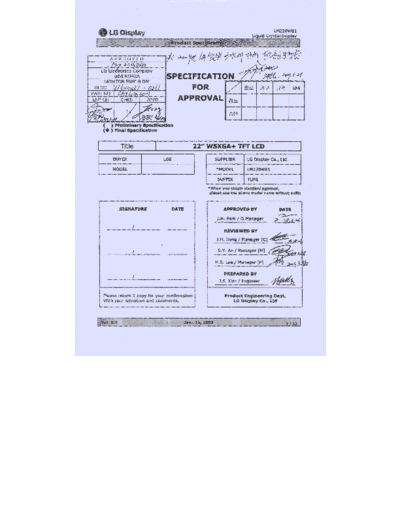

Image preview - the first page of the document
![Panel_LG_Display_LM220WE1-TLM1_0_[DS]](/pics/5eafd0330d158.gif)
>> Download Panel_LG_Display_LM220WE1-TLM1_0_[DS] documenatation <<
Text preview - extract from the document
LM220WE1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1) ELECTRICAL CHARACTERISTICS 6
2) INTERFACE CONNECTIONS 9
3) LVDS characteristics 12
4) SIGNAL TIMING SPECIFICATIONS 15
5) SIGNAL TIMING WAVEFORMS 16
6) COLOR INPUT DATA REFERNECE 17
7) POWER SEQUENCE 18
8) POWER DIP CONDITION 19
4 OPTICAL SPECIFICATIONS 20
5 MECHANICAL CHARACTERISTICS 25
6 RELIABILITY 28
7 INTERNATIONAL STANDARDS 29
1) SAFETY 29
2) EMC 29
8 PACKING 30
1) DESIGNATION OF LOT MARK 30
2) PACKING FORM 30
9 PRECAUTIONS 31
1) MOUNTING PRECAUTIONS 31
2) OPERATING PRECAUTIONS 31
3) ELECTROSTATIC DISCHARGE CONTROL 32
4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 32
5) STROAGE 32
6) HANDLING PRECAUTIONS FOR PROTECTION FILM 32
Ver. 0.0 Jan., 15, 2009 2 / 32
LM220WE1
Liquid Crystal Display
Product Specification
Record of revisions
Revision No Date Page Description
Ver. 0.0 Jan., 15, 2009 First Draft, Final Specifications
Ver. 0.0 Jan., 15, 2009 3 / 32
LM220WE1
Liquid Crystal Display
Product Specification
1. General description
LM220WE1-TLM1 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a
transmissive type display operating in the normally white mode. It has a 22 inch diagonally measured active
display area with WSXGA+ resolution (1050 vertical by 1680 horizontal pixel array) Each pixel is divided into
Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of
the sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more
than 16,7M colors with Advanced-FRC(Frame Rate Control). It has been designed to apply the interface
method that enables low power, high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low
Voltage Differential Signaling) chip. It is intended to support applications where thin thickness, wide viewing
angle, low power are critical factors and graphic displays are important. In combination with the vertical
arrangement of the sub-pixels, the LM220WE1-TLM1 characteristics provide an excellent flat panel display for
office automation products such as monitors.
RGB
FIG. 1 Block diagram
Source driver circuit
S1 S1680
LVDS G1
pair #1 Timing
LVDS controller
pair #2 TFT-LCD Panel
