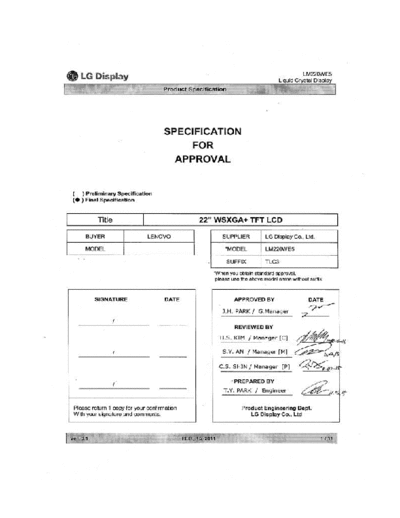

Image preview - the first page of the document
![Panel_LG_Display_LM220WE5-TLC3_0_[DS]](/pics/5eafd062cb835.gif)
>> Download Panel_LG_Display_LM220WE5-TLC3_0_[DS] documenatation <<
Text preview - extract from the document
LM220WE5
Liquid Crystal Display
Product Specification
Ver. 0.1 FEB., 15, 2011 1 / 31
LM220WE5
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1) ELECTRICAL CHARACTERISTICS 6
2) INTERFACE CONNECTIONS 8
3) LVDS characteristics 11
4) SIGNAL TIMING SPECIFICATIONS 14
5) SIGNAL TIMING WAVEFORMS 15
6) COLOR INPUT DATA REFERNECE 16
7) POWER SEQUENCE 17
8) POWER DIP CONDITION 18
4 OPTICAL SPECIFICATIONS 19
5 MECHANICAL CHARACTERISTICS 24
6 RELIABILITY 27
7 INTERNATIONAL STANDARDS 28
1) SAFETY 28
2) EMC 28
8 PACKING 29
1) DESIGNATION OF LOT MARK 29
2) PACKING FORM 29
9 PRECAUTIONS 30
1) MOUNTING PRECAUTIONS 30
2) OPERATING PRECAUTIONS 30
3) ELECTROSTATIC DISCHARGE CONTROL 31
4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 31
5) STROAGE 31
6) HANDLING PRECAUTIONS FOR PROTECTION FILM 31
Ver. 0.1 FEB., 15, 2011 2 / 31
LM220WE5
Liquid Crystal Display
Product Specification
Record of revisions
Revision No Date Page Description
Ver. 0.1 Nov., 15, 2010 First Draft, Preliminary Specifications
Ver. 0.1 FEB., 15, 2011 3 / 31
LM220WE5
Liquid Crystal Display
Product Specification
1. General description
LM220WE5-TLC1 is a Color Active Matrix Liquid Crystal Display Light Emitting Diode ( White LED) backlight
system without LED driver. The matrix employs a-Si Thin Film Transistor as the active element. It is a
transmissive type display operating in the normally white mode. It has a 22 inch diagonally measured active
display area with WSXGA+ resolution (1050 vertical by 1680 horizontal pixel array) Each pixel is divided into
Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of
the sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more
than 16,7M colors with Advanced-FRC(Frame Rate Control). It has been designed to apply the interface
method that enables low power, high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low
Voltage Differential Signaling) chip. It is intended to support applications where thin thickness, wide viewing
angle, low power are critical factors and graphic displays are important. In combination with the vertical
arrangement of the sub-pixels, the LM220WE5-TLC1 characteristics provide an excellent flat panel display for
office automation products such as monitors.
RGB
FIG. 1 Block diagram
Source driver circuit
S1 S1680
LVDS G1
pair #1 Timing
LVDS controller
pair #2 TFT-LCD Panel
