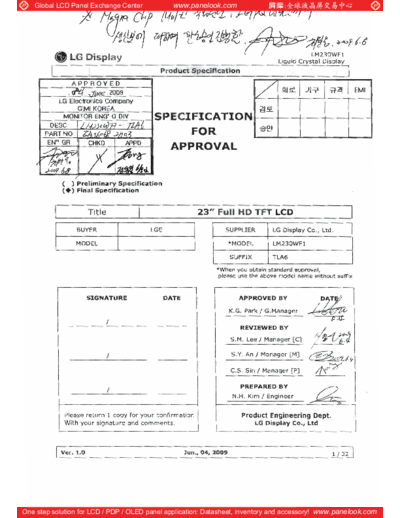

Image preview - the first page of the document
![Panel_LG_Display_LM230WF1-TLA6_0_[DS]](/pics/5eafd0864ccd9.gif)
>> Download Panel_LG_Display_LM230WF1-TLA6_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
642-3, Jinpyung-dong, Gumi-si
Gyungsangbuk-do, 730-726, Korea
Tel : +82-54-478-4114
Fax : +82-54-711-7308
Date : June 4, 2009
Subject : Quality Guarantee for Product
Dear LG Electronics Inc. ("LGE"),
In response to your request dated June 4,,2009, LG Display assures the quality of the
Product supplied to LGE as follows:
Engineering : D-IC MULTI FAB change from DongBu Hitech to Magna Chip
Change Note
Model : LM185WH1-TLE3,LM185WH1-TLA7,LM200WD1-TLA7, LM200WD1-TLA9,
LM230WF1-TLA6
Customer : LGE
Product Range : LCD Modules be manufactured from June 6, 2009 until PQ is
completed at LGE's factory.
Guarantee : If any end-user of the Model and Product Range supplied to
Customer raises any quality claim regarding, LG Display will be
responsible for LCM replacement, logistics and/or rework fee as the
case may be, and any direct costs related thereto.
LG Display will put forth our best efforts and the fullest support to provide the highest
quality product and service, and LG Display hopes to continue with LG Electronics the
positive and productive relationship for mutual benefit.
Best Regards , Agreed and accepted
D. J. Lee / Team Leader, [Name / Title]
IT Customer Service Team [Team]
LG Display Co., Ltd. LG Electronics Inc.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LM230WF1
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1) ELECTRICAL CHARACTERISTICS 6
2) INTERFACE CONNECTIONS 9
3) LVDS characteristics 12
4) SIGNAL TIMING SPECIFICATIONS 15
5) SIGNAL TIMING WAVEFORMS 16
6) COLOR INPUT DATA REFERNECE 17
7) POWER SEQUENCE 18
8) POWER DIP CONDITION 19
4 OPTICAL SPECIFICATIONS 20
5 MECHANICAL CHARACTERISTICS 25
6 RELIABILITY 28
7 INTERNATIONAL STANDARDS 29
1) SAFETY 29
2) EMC 29
8 PACKING 30
1) DESIGNATION OF LOT MARK 30
2) PACKING FORM 30
9 PRECAUTIONS 31
1) MOUNTING PRECAUTIONS 31
2) OPERATING PRECAUTIONS 31
3) ELECTROSTATIC DISCHARGE CONTROL 32
4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 32
5) STROAGE 32
6) HANDLING PRECAUTIONS FOR PROTECTION FILM 32
Ver. 1.0 Jun., 04, 2009 2 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LM230WF1
Liquid Crystal Display
Product Specification
Record of revisions
Revision No Date Page Description
Ver. 0.1 Jun, 04, 2008 First Draft, Preliminary Specifications
Ver, 1.0 Jun, 04, 2008 Final Specifications
Ver. 1.0 Jun., 04, 2009 3 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LM230WF1
Liquid Crystal Display
Product Specification
1. General description
LM230WF1-TLA6 is a Color Active Matrix Liquid Crystal Display with an integral Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a
transmissive type display operating in the normally white mode. It has a 23 inch diagonally measured active
display area with FHD resolution (1080 vertical by 1920 horizontal pixel array) Each pixel is divided into Red,
Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the
sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more than
16,7M colors with Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method
that enables low power, high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low Voltage
Differential Signaling) chip. It is intended to support applications where thin thickness, wide viewing angle, low
power are critical factors and graphic displays are important. In combination with the vertical arrangement of
the sub-pixels, the LM230WF1-TLA6 characteristics provide an excellent flat panel display for office automation
products such as monitors.
RGB
FIG. 1 Block diagram
Source driver circuit
S1 S1920
LVDS G1
pair #1 Timing
LVDS controller
pair #2 TFT-LCD Panel
(1920 RGB 1080 pixels)
CN1
(30pin)
+5V G1080
Power circuit
VLCD block
VLamp CN2, 3 (2pin)
VLamp Backlight assembly (4 CCFLs)
CN4, 5 (2pin)
General features
Active screen size 23 inches(58.42cm) diagonal(Aspect ratio 16:9)
Outline Dimension 533.2(H) x 312.0(V) x 16.5(D) mm(Typ.)
Pixel Pitch 0.265 mm x 0.265 mm
Pixel Format 1920 horiz. By 1080 vert. Pixels RGB stripes arrangement
Interface LVDS 2Port
Color depth 16.7M colors
Luminance, white 300 cd/m2 ( Center 1Point, typ)
Viewing Angle (CR>10) R/L 170(Typ.), U/D 160(Typ.)
Power Consumption Total 30W (Typ.), (4.5W@VLCD , 25.5W@IBL=7.5mA)
Weight 2600g(typ.)
Display operating mode Transmissive mode, normally White
Surface treatments Hard coating(3H) & Anti-Glare treatment of the front polarizer
Color Gamut 72% CIE 1931
Ver. 1.0 Jun., 04, 2009 4 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LM230WF1
Liquid Crystal Display
Product Specification
2. Absolute maximum ratings
The following are maximum values which, if exceeded,
may cause faulty operation or damage to the unit.
Table 1. Absolute maximum ratings
Values
Parameter Symbol Units Notes
Min Max
Power Supply Input Voltage VLCD -0.3 +6.0 Vdc At 25
Operating Temperature TOP 0 50 C
Storage Temperature TST -20 60 C
1
Operating Ambient Humidity HOP 10 90 %RH
Storage Humidity HST 10 90 %RH
Note : 1. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39 C Max, and no condensation of water.
FIG. 2 Temperature and relative humidity
90%
60
60%
50 Storage
Wet Bulb
Temperature [ ]
Humidity
[(%)RH]
40
40%
Operation
30
20
10
0
10%
-20 0 10 20 30 40 50 60 70 80
Dry Bulb Temperature [ ]
Ver. 1.0 Jun., 04, 2009 5 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LM230WF1
Liquid Crystal Display
Product Specification
3. Electrical specifications
3-1. Electrical characteristics
It requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input power for the CCFL/Backlight, is typically
generated by an inverter. The inverter is an external unit to the LCDs.
Table 2. Electrical characteristics
Values
Parameter Symbol Unit Notes
Min Typ Max
MODULE :
Power Supply Input Voltage VLCD 4.5 5.0 5.5 Vdc
Permissive Power Input Ripple VLCD - - 0.4 V 3
ILCD-MOSAIC - 900 1100 mA 1
Power Supply Input Current
ILCD-BLACK - 1050 1250 mA 2
Power Consumption PLCD - 4.5 5.5 Watt 1
Inrush current IRUSH - - 3.0 A 4
Note :
1. The specified current and power consumption are
under the VLCD=5.0V, 25 r 2 C,fV=60Hz condition
whereas mosaic pattern(8 x 6) is displayed and fV is the frame frequency.
2. The current is specified at the maximum current pattern.
3. Permissive power ripple should be measured under VCC=5.0V, 25 C, fV (frame frequency)=Max
condition and At that time, we recommend the bandwidth configuration of oscilloscope
is to be under 20MHz.
4. The duration of rush current is about 2ms and rising time of power Input is 500us r 20%.
FIG.3 pattern for Electrical characteristics
power consumption measurement power input ripple
White : 255Gray
Black : 0Gray
Mosaic Pattern(8 x 6) Full Black Pattern
Ver. 1.0 Jun., 04, 2009 6 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LM230WF1
Liquid Crystal Display
Product Specification
Table 3. Electrical characteristics
Values
Parameter Symbol Unit Notes
Min Typ Max
LAMP :
Operating Voltage VBL 830(8.0mA) 850 (7.5mA) 1000 (3.0mA) VRMS 1, 2
Operating Current IBL 3.0 7.5 8.0 mARMS 1
Established Starting Voltage Vs 1, 3
at 25 C 1500 VRMS
at 0 C 1800 VRMS
Operating Frequency fBL 40 60 70 kHz 4
Discharge Stabilization Time TS 3 Min 1, 5
Power Consumption PBL 25.5 28.1 Watt 6
Life Time 50000 Hrs 1, 7
Note :
The design of the inverter must have specifications for the lamp in LCD Assembly.
The performance of the Lamp in LCM, for example life time or brightness, is extremely influenced
by the characteristics of the DC-AC inverter. So all the parameters of an inverter should be carefully
designed so as not to produce too much leakage current from high-voltage output of the inverter.
When you design or order the inverter, please make sure unwanted lighting caused by the mismatch of
