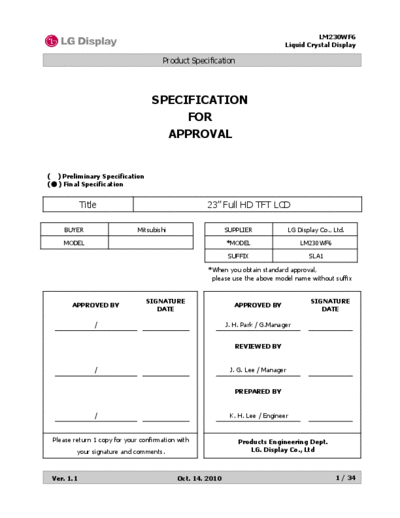

Image preview - the first page of the document
![Panel_LG_Display_LM230WF6-SLA1_0_[DS]](/pics/5eafd2c84b95b.gif)
>> Download Panel_LG_Display_LM230WF6-SLA1_0_[DS] documenatation <<
Text preview - extract from the document
LM230WF6
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 23" Full HD TFT LCD
BUYER Mitsubishi SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LM230WF6
SUFFIX SLA1
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
/ J. H. Park / G.Manager
REVIEWED BY
/ J. G. Lee / Manager
PREPARED BY
/ K. H. Lee / Engineer
Please return 1 copy for your confirmation with Products Engineering Dept.
your signature and comments. LG. Display Co., Ltd
Ver. 1.1 Oct. 14. 2010 1 / 34
LM230WF6
Liquid Crystal Display
Product Specification
CONTENTS
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
3-1 ELECTRICAL CHARACTREISTICS 6
3-2 INTERFACE CONNECTIONS 8
3-3 LVDS CHARACTERISTICS 12
3-4 SIGNAL TIMING SPECIFICATIONS 16
3-5 SIGNAL TIMING WAVEFORMS 17
3-6 COLOR DATA REFERNECE 18
3-7 POWER SEQUENCE 19
4 OPTICAL SFECIFICATIONS 20
5 MECHANICAL CHARACTERISTICS 27
6 RELIABLITY 30
7 INTERNATIONAL STANDARDS 31
7-1 SAFETY 31
7-2 EMC 31
7-3 ENVIRONMENT 31
8 PACKING 32
8-1 DESIGNATION OF LOT MARK 32
8-2 PACKING FORM 32
9 PRECAUTIONS 33
Ver. 1.1 Oct. 14. 2010 2 / 34
LM230WF6
Liquid Crystal Display
Product Specification
RECORD OF REVISIONS
Revision
Revision Date Page Description
No
0.0 July. 6. 2010 - Preliminary
0.1 July.16.2010 4 Correct typing errors (400 350cd/m2 )
60Hz Timing change ( H min blank 2040 )
0.2 Aug. 06.2010 4.6 Update logic power consumption.
Update GTG specification and GTG MPRT measurement condition at
20
120Hz
0.3 Aug.20.2010 5 Add the notes 2 and 3
26 Correct Table 11 (Gray scale specification)
0.4 Sep,16.2010 4 Update BL power consumption
8 Update pin configuration.
16 Timing specification change (60hz Timing is erased)
19 Correct the miss printing from Lamp to LED
Add the notes no4, and inversion select pin.
20 Update the color coordination.
26 Correct Table 11 (Gray scale specification)
Table 13, Environment test condition is changed.
30
Variation 2010min, Shock 120100G
31 Change Safety standard.
1.0 Sep.27.2010 Final specifications
6 Correct the miss printing from Lamp to LED
7 Update BL max power consumption
1.1 Oct.14.2010 20 Change CR specification from 1000 to 900.
Ver. 1.1 Oct. 14. 2010 3 / 34
LM230WF6
Liquid Crystal Display
Product Specification
1. General Description
LM230WF6 is a Color Active Matrix Liquid Crystal Display Light Emitting Diode ( White LED) backlight system
without LED driver. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally white mode. It has a 23-inch diagonally measured
active display area with FHD resolution (1080 vertical by 1920 horizontal pixel array). Each pixel is divided into
Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of
the sub-pixel color is determined with a 8-bit gray scale signal for each dot, thus, presenting a palette of more
than 16,7M(True) colors. It has been designed to apply the 8Bit 4 port LVDS interface. It is intended to
support displays where high brightness, super wide viewing angle, high color saturation, and high color are
important.
Mini-LVDS(RGB)
LVDS LVDS 3,4
Source Driver Circuit
2Port CN2
(41pin) Timing Control Block S1 S1920
LVDS 1,2
LVDS CN1
2Port (51pin)
TFT - LCD Panel
