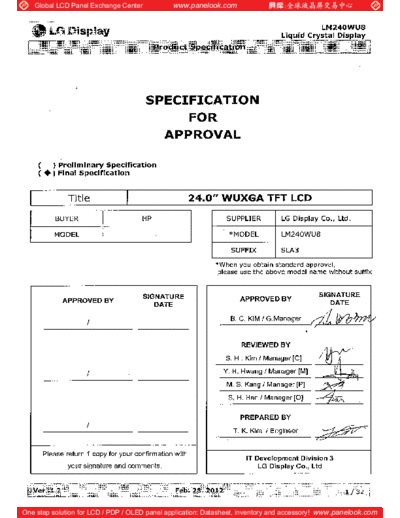

Image preview - the first page of the document
![Panel_LG_Display_LM240WU8-SLA3_0_[DS]](/pics/5eafd3c6a108c.gif)
>> Download Panel_LG_Display_LM240WU8-SLA3_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
LM240WU8
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
( ) Preliminary Specification
( ) Final Specification
Title 24.0" WUXGA TFT LCD
BUYER HP SUPPLIER LG Display Co., Ltd.
MODEL *MODEL LM240WU8
SUFFIX SLA3
*When you obtain standard approval,
please use the above model name without suffix
SIGNATURE SIGNATURE
APPROVED BY APPROVED BY
DATE DATE
B. C. KIM / G.Manager
/
REVIEWED BY
S. H . Kim / Manager [C]
/ Y. H. Hwang / Manager [M]
M. S. Kang / Manager [P]
S. H. Han / Manager [O]
PREPARED BY
/
T. K. Kim / Engineer
Please return 1 copy for your confirmation with
IT Development Division 3
your signature and comments. LG Display Co., Ltd
Ver. 1.2 Feb. 28. 2012 1 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LM240WU8
Liquid Crystal Display
Product Specification
Contents
No ITEM Page
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1) ELECTRICAL CHARACTERISTICS 6
2) INTERFACE CONNECTIONS 8
3) LVDS characteristics 11
4) SIGNAL TIMING SPECIFICATIONS 14
5) SIGNAL TIMING WAVEFORMS 15
6) COLOR INPUT DATA REFERNECE 16
7) POWER SEQUENCE 17
8) POWER DIP CONDITION 18
4 OPTICAL SPECIFICATIONS 19
5 MECHANICAL CHARACTERISTICS 25
6 RELIABILITY 28
7 INTERNATIONAL STANDARDS 29
1) SAFETY 29
2) EMC 29
3) ENVIRONMENT 27
8 PACKING 30
1) DESIGNATION OF LOT MARK 30
2) PACKING FORM 30
9 PRECAUTIONS 31
1) MOUNTING PRECAUTIONS 31
2) OPERATING PRECAUTIONS 31
3) ELECTROSTATIC DISCHARGE CONTROL 32
4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 32
5) STROAGE 32
6) HANDLING PRECAUTIONS FOR PROTECTION FILM 32
Ver. 1.2 Feb. 28. 2012 2 / 32
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LM240WU8
Liquid Crystal Display
Product Specification
Record of revisions
Revision
Revision Date Page Description
No.
0.0 Dec. 15. 2010 - Preliminary Specifications
0.1 Mar. 07. 2011 4 Updated the General Features
6 Updated the Electrical characteristics
7 Updated LED Bar Electrical characteristics
19 Updated the Optical characteristics
Updated the Surface Luminance Spec Measurement pint
0.2 Jun. 27. 2011 20
